ASRockNEW · 2025SKU MOBO-4BFCECDAED
ASRock X870E NOVA WIFI m-ATX Intel Motherboard, AMD X870E Chipset, 4 x DDR5 DIMM Slots, 256GB Max Memory, 3x Hyper M.2 Sockets PCIe Gen4x4, WIFI7 and
ASRock X870E NOVA WIFI m-ATX Intel Motherboard, AMD X870E Chipset, 4 x DDR5 DIMM Slots, 256GB Max Memory, 3x Hyper M.2 Sockets PCIe Gen4x4, WIFI7 and
Highlights
X870E
M-ATX form factor
M-ATX
DDR5 support
Sold by AMANOON
1,575
🚚Free 2-3 day
↩️7-day returns
🛡Warranty
✅Verified seller
In stock· 5 left, Dubai
Free delivery
Tomorrow before 9pm
Same-day Dubai
Order before 4pm
1 Year Warranty
Authorized by manufacturer
Description
The ASRock X870E NOVA WIFI m-ATX Intel Motherboard, AMD X870E Chipset, 4 x DDR5 DIMM Slots, 256GB Max Memory, 3x Hyper M.2 Sockets PCIe Gen4x4, WIFI7 and is a desktop motherboard featuring X870E, M-ATX, DDR5, 4 DIMM. Built for reliable high-performance desktop builds.
Genuine product with warranty and fast delivery across the UAE from Amanoon.
Specifications
Technical Specifications
35 ITEMSCPU Socket
AMD Socket AM5
Processor Support
AMD Ryzen™ 9000, 8000 & 7000 Series Processors
Form Factor
ATX (30.5 × 24.4 cm)
PCB Design
8-Layer PCB, 2oz Copper PCB, Server-Grade Low-Loss PCB
Memory Support
4 × DDR5 DIMM Slots, Dual Channel DDR5
Maximum Memory
256GB
Memory Speed
Up to DDR5-8200+ (OC)
Memory Compatibility
ECC & Non-ECC Unbuffered, AMD EXPO & Intel XMP
Graphics Output
1 × HDMI 2.1 (Up to 4K 120Hz), 2 × USB4 Type-C (Up to 8K 30Hz with supported CPU iGPU)
Integrated Graphics
AMD RDNA™ Graphics (CPU Dependent)
Audio
Realtek ALC4082 7.1-Channel HD Audio, Nahimic Audio, Optical S/PDIF Out
LAN
Realtek RTL8126 5 Gigabit Ethernet
Wireless Connectivity
Wi-Fi 7 (802.11be 2×2), Bluetooth 5.4
Expansion Slots
1 × PCIe 5.0 x16, 1 × PCIe 3.0 x16 (x2 Mode), 1 × PCIe 3.0 x1, 1 × M.2 Key-E for Wi-Fi
M.2 Storage Slots
5 × M.2 (1 × PCIe Gen5 x4, 3 × PCIe Gen4 x4, 1 × PCIe Gen3 x2/SATA)
SATA Ports
4 × SATA III 6Gb/s
RAID Support
RAID 0/1 (SATA), RAID 0/1/10 (NVMe)
Rear USB Ports
2 × USB4 Type-C (40Gbps), 5 × USB 3.2 Gen2 Type-A, 3 × USB 3.2 Gen1 Type-A, 2 × USB 2.0
Front USB Support
1 × USB 3.2 Gen2x2 Type-C, 4 × USB 3.2 Gen1, 4 × USB 2.0
USB Features
USB4 40Gbps, USB PD 3.0 (15W), ESD Protection
Display Outputs
1 × HDMI 2.1, 2 × USB4 Display Output

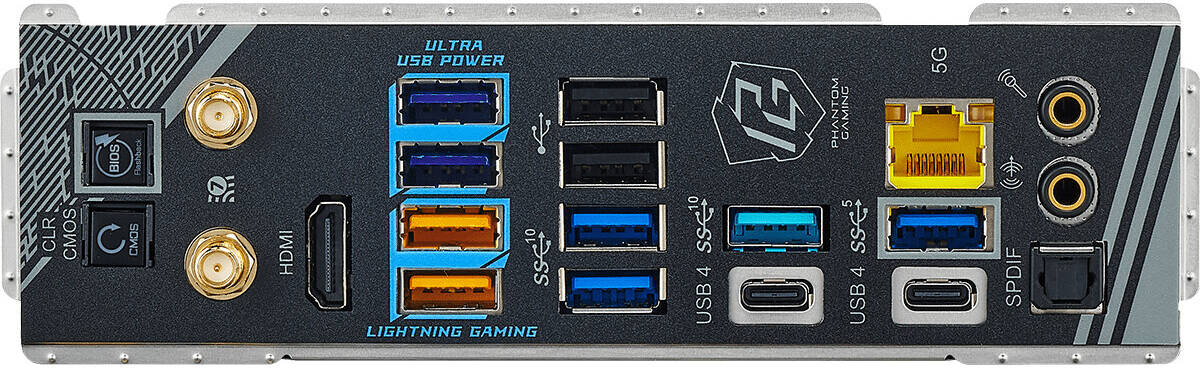

Rear I/O
2 × Wi-Fi Antenna Ports, HDMI, Optical S/PDIF, 2 × USB4 Type-C, 5 × USB 3.2 Gen2, 3 × USB 3.2 Gen1, 2 × USB 2.0, RJ-45 LAN, Clear CMOS, BIOS Flashback, Line-Out, Mic-In
Cooling Headers
2 × CPU Fan, 3 × Chassis Fan, 1 × AIO Pump, 1 × Water Pump
RGB Support
1 × RGB Header, 3 × Addressable RGB Headers
Power Connectors
24-Pin ATX, Dual 8-Pin CPU Power
Internal Headers
Front USB-C 20Gbps, USB 3.2 Gen1, USB 2.0, Front Audio, Thermistor Headers, Power & Reset Buttons, Dr. Debug LED
Networking Features
ASRock Lightning Gaming Ports, Ultra USB Power
Power Design
20+2+1 Power Phase, 110A SPS for VCore + SOC
Capacitors
20K Black Conductive Polymer Capacitors
BIOS
256Mb AMI UEFI BIOS with GUI
BIOS Features
BIOS Flashback, Instant Flash, EZ Mode, Full HD UEFI, Auto Driver Installer
Software
ASRock Motherboard Utility, Phantom Gaming Tuning, Phantom Gaming LAN Software, Polychrome SYNC

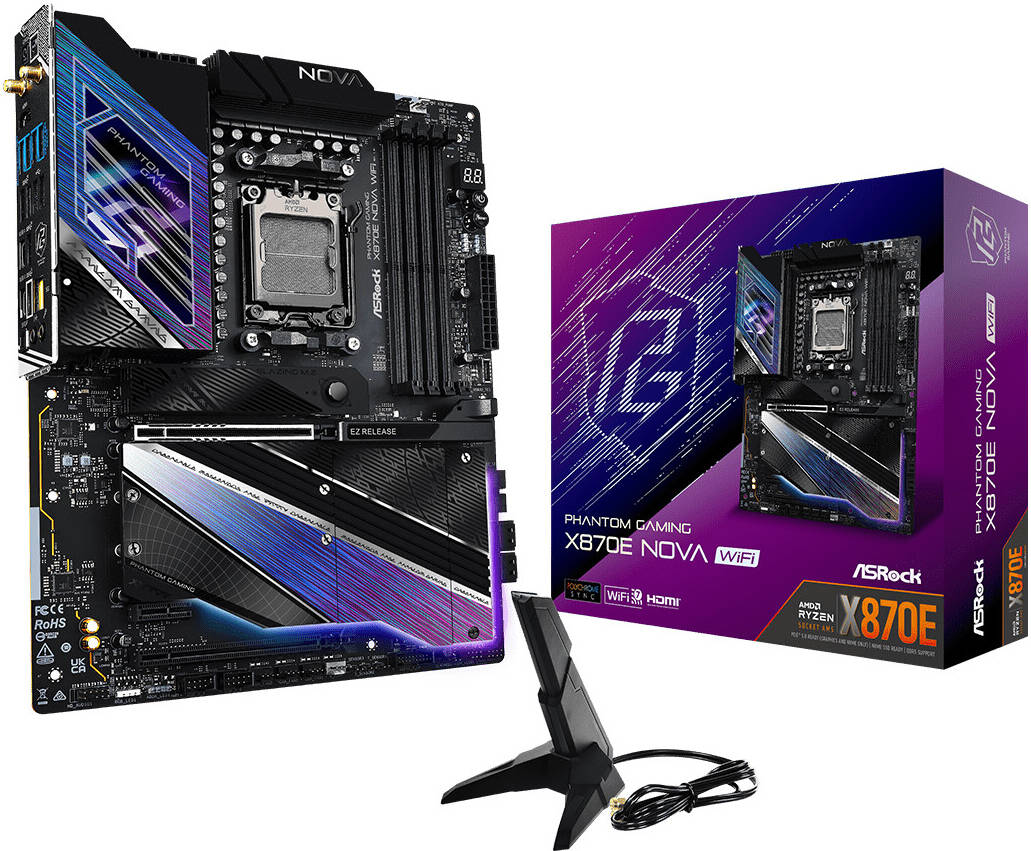

Accessories Included
4 × SATA Cables, Wi-Fi 2.4/5/6GHz Antenna, ARGB Splitter Cable, 3 × Thermistor Cables
Operating System Support
Windows 10 64-bit, Windows 11 64-bit
Certifications
FCC, CE, ErP/EuP Ready
Specifications subject to change without notice. All trademarks belong to their respective owners.
