ASUS B850M MAX Gaming WiFi AM5 Micro-ATX Motherboard, AMD B850 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots, Wi-

01 / 06

Sold & shipped by AMANOON

ShareWXf∞

AsusNEW · 2025SKU MOBO-0414FF3528

ASUS B850M MAX Gaming WiFi AM5 Micro-ATX Motherboard, AMD B850 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots, Wi-

0(0 reviews)·By AMANOON

Highlights

AM5

B850 chipset

B850

mATX form factor

mATX

DDR5 support

3x M.2

PCIe 5.0

Sold by AMANOON

785

🚚Free 2-3 day

↩️7-day returns

🛡Warranty

✅Verified seller

In stock· 5 left, Dubai

Free delivery

Tomorrow before 9pm

Same-day Dubai

Order before 4pm

1 Year Warranty

Authorized by manufacturer

Description

The ASUS B850M MAX Gaming WiFi AM5 Micro-ATX Motherboard, AMD B850 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots, Wi- is a desktop motherboard featuring AM5, B850, mATX, DDR5. Built for reliable high-performance desktop builds.

Genuine product with warranty and fast delivery across the UAE from Amanoon.

Specifications

Technical Specifications

18 ITEMS

CPU Support

AMD Socket AM5: Ryzen™ 9000 / 8000 / 7000 Series (check support list on ASUS site)

Chipset

AMD B850

Memory

4 × DIMM, up to 256GB DDR5, up to 8000+ MT/s (OC)Dual channel, ECC & Non-ECC Un-buffered DIMMSupports EXPO™, AEMP, On-Die ECC

Graphics

1 × DisplayPort 1.4 (max 8K@30Hz)1 × HDMI 2.1 (max 4K@60Hz)*Depends on CPU

Expansion Slots

Ryzen™ 9000 / 7000: 1 × PCIe 5.0 x16, 3 × PCIe 4.0 x16 (x1 mode)Ryzen™ 8000: 1 × PCIe 4.0 x16 (x8/x4), 3 × PCIe 4.0 x16 (x1 mode)

Storage

3 × M.2, 4 × SATA 6Gb/sM.2_1: PCIe 5.0 x4 (Ryzen 9000/7000), PCIe 4.0 x4 (Ryzen 8000)M.2_2: PCIe 4.0 x4M.2_3: PCIe 4.0 x2RAID support varies by CPU

Ethernet

Realtek 1Gb Ethernet + ASUS LANGuard

Wireless & BT

Wi-Fi 6 (1×1, 2.4/5GHz)Bluetooth® v5.4

USB (Rear I/O)

2 × USB 10Gbps (1 × Type-A, 1 × Type-C)2 × USB 5Gbps (Type-A)5 × USB 2.0 (Type-A)

USB (Front I/O)

1 × USB 5Gbps (Type-C)2 × USB 5Gbps headers (4 ports)2 × USB 2.0 headers (4 ports)

Audio

Realtek 7.1 Surround HD Audio CODEC}Jack-detection, Multi-streaming, RetaskingUp to 24-bit/192 kHz playbackAudio shielding, Premium caps, Dedicated layers

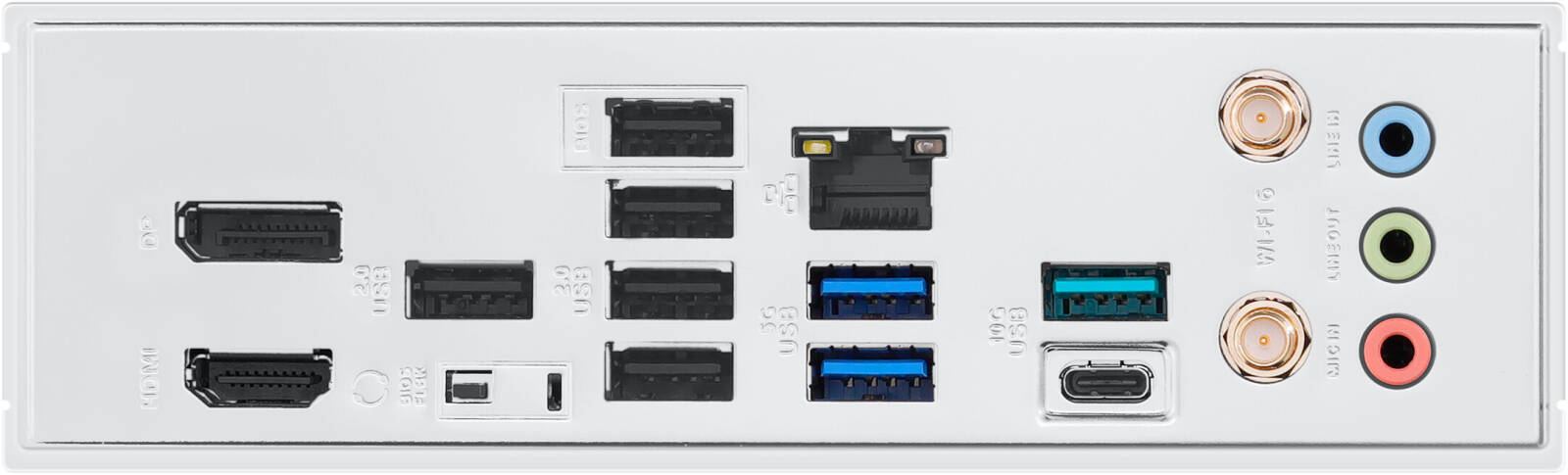

Back Panel I/O

2 × USB 10Gbps, 2 × USB 5Gbps, 5 × USB 2.01 × DisplayPort, 1 × HDMI, 1 × Wi-Fi module1 × Realtek 1Gb LAN, 3 × Audio jacks1 × BIOS FlashBack™ button

Software

Armoury Crate, Aura Creator/Sync, Fan Xpert 2+, AI Advisor, Driver Hub, GlideX, TurboV Core, CPU-Z, Norton 360 (60-day trial), WinRAR (40-day trial)

BIOS

256 Mb Flash ROM, UEFI AMI BIOSCrashFree BIOS 3, EZ Flash 3, EZ Mode, MyHotkey

Manageability

WOL by PME, PXE

Accessories

2 × SATA cables1 × Wi-Fi antenna2 × M.2 screw packages1 × Quick Start Guide

OS Support

Windows® 11 / 10 64-bit

Form Factor

mATX (24.4 × 24.4 cm / 9.6 × 9.6 in)

Specifications subject to change without notice. All trademarks belong to their respective owners.
