AsusNEW · 2025SKU MOBO-800AF3F762
ASUS PRIME B760M-A WIFI II LGA 1700 Micro ATX Motherboard, Intel B760 Chipset, 4x DIMM DDR5 Slots, 256GB Max Memory, 1 x PCIe 5.0 x16 SafeSlot, 2 x M
ASUS PRIME B760M-A WIFI II LGA 1700 Micro ATX Motherboard, Intel B760 Chipset, 4x DIMM DDR5 Slots, 256GB Max Memory, 1 x PCIe 5.0 x16 SafeSlot, 2 x M.
Highlights
LGA-1700
B760 chipset
B760
mATX form factor
mATX
DDR5 support
Sold by AMANOON
669
🚚Free 2-3 day
↩️7-day returns
🛡Warranty
✅Verified seller
In stock· 5 left, Dubai
Free delivery
Tomorrow before 9pm
Same-day Dubai
Order before 4pm
1 Year Warranty
Authorized by manufacturer
Description
The ASUS PRIME B760M-A WIFI II LGA 1700 Micro ATX Motherboard, Intel B760 Chipset, 4x DIMM DDR5 Slots, 256GB Max Memory, 1 x PCIe 5.0 x16 SafeSlot, 2 x M. is a desktop motherboard featuring LGA-1700, B760, mATX, DDR5. Built for reliable high-performance desktop builds.
Genuine product with warranty and fast delivery across the UAE from Amanoon.
Specifications
Technical Specifications
23 ITEMSChipset
Intel® B760 Chipset
Memory
4× DIMM, up to 256GB DDR5; speeds up to 7200+ OC; Non-ECC Unbuffered; Dual Channel; Intel XMP
Graphics
1× DisplayPort 1.4 (4K@60Hz); 1× HDMI 2.1 (4K@60Hz)
Expansion Slots
CPU: 1× PCIe 5.0 x16; Chipset: 1× PCIe 4.0 x16 (x4), 1× PCIe 4.0 x16 (x1)
Storage
2× M.2 PCIe 4.0 x4; 4× SATA 6Gb/s; Intel RST RAID 0/1/5/10
Ethernet
Realtek 2.5Gb Ethernet; ASUS LANGuard
Wireless / Bluetooth
Wi-Fi 6E (2×2, 2.4/5/6GHz, 160MHz); Bluetooth 5.4
USB (Rear)
6 ports: 2× USB 10Gbps Type-A, 4× USB 2.0
USB (Front)
Up to 10 ports via headers: 4× USB 5Gbps, 1× USB-C 5Gbps, 5× USB 2.0
Audio
Realtek 7.1 HD Audio CODEC; 24-bit/192kHz; Shielding, premium caps, dedicated PCB layers

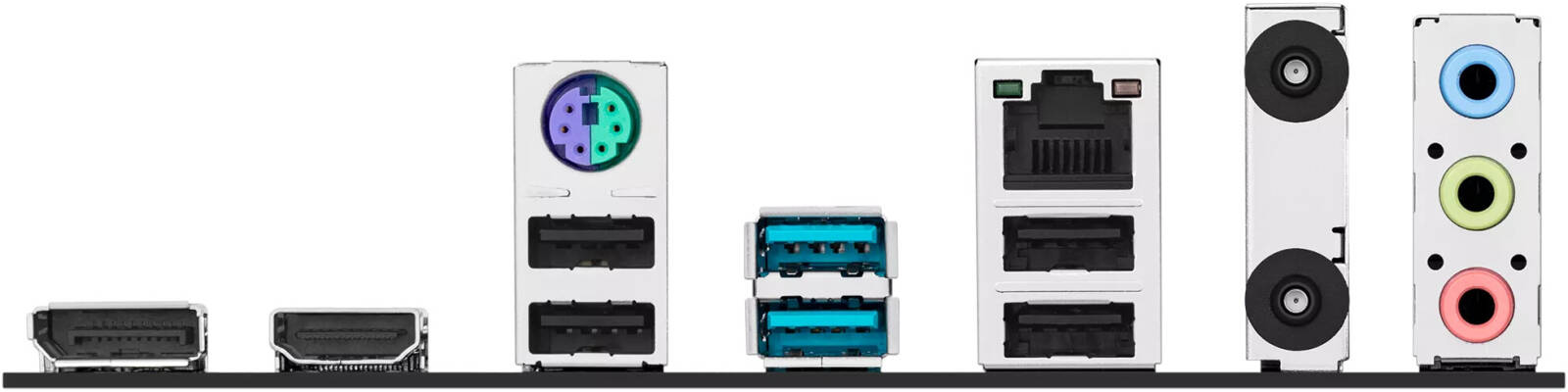

Back Panel I/O
2× USB 10Gbps, 4× USB 2.0, DP, HDMI, Wi-Fi module, 2.5Gb LAN, 3× audio jacks, PS/2 combo
Internal I/O — Cooling
CPU fan, CPU OPT fan, 2× chassis fan headers
Internal I/O — Power
24-pin ATX, 8-pin CPU
Internal I/O — Storage
2× M.2, 4× SATA
Internal I/O — USB
2× USB 5Gbps headers (4 ports), USB-C 5Gbps, 2× USB2 headers (4 ports), 1× USB2 header
Internal I/O — Misc
3× Addressable Gen2 RGB; Aura RGB header; Clear CMOS; COM header; Front audio; S/PDIF; TPM; System panel header
Special Features
ASUS 5X Protection III; Q-Design tools; M.2 & VRM heatsinks; EZ DIY; Aura Sync
Software
Armoury Crate suite; DriverHub; AI Suite 3; ASUS CPU-Z; Norton trial; WinRAR trial; UEFI utilities
BIOS
128 Mb Flash ROM; UEFI AMI BIOS
Manageability
WOL by PME; PXE
Accessories
2× SATA cables; WiFi antenna; I/O shield; M.2 rubber & screw pack; Quick guide
OS Support
Windows 11 / Windows 10 64-bit
Form Factor
mATX; 9.6×9.6 in (24.4×24.4 cm)
Specifications subject to change without notice. All trademarks belong to their respective owners.
Reviews
0
0 verified reviews · 96% recommend
5★0%
4★0%
3★0%
2★0%
1★0%
Verified reviews only. All ratings are from customers who purchased this product through Amanoon.
No reviews yet. Be the first to review this product!
Questions & Answers
0 questions · 0 answered
No questions yet
Be the first to ask about this product.
Warranty
🛡️
1-year manufacturer warranty
Covered by Asus UAE — your serial registers automatically on activation.
🧰
Amanoon protection plan
Optional 2nd-year extension with accidental damage cover from 399. Add at checkout.
↩️
7-day no-questions returns
Open the box, try it, return it if it isn't right. We arrange free pickup anywhere in the UAE.
⚡
DOA replacement
Dead-on-arrival units are replaced within 24 hours, sealed and tested. No refurb, no excuses.
