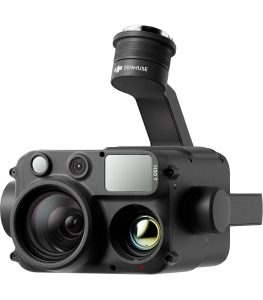

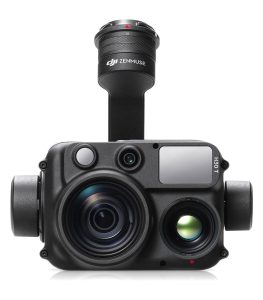

DJI Zenmuse H30T High Resolution Thermal Drone Camera

Features

The DJI Zenmuse H30T represents the next generation of aerial imaging technology designed for professionals who require unmatched clarity, versatility, and precision in drone-based data capture. Built to integrate seamlessly with the DJI Matrice 300 RTK and Matrice 350 RTK, the H30T is a powerhouse sensor system that merges a high-resolution thermal camera, zoom and wide-angle visual cameras, laser rangefinder, and NIR auxiliary light into one unified gimbal payload. Its design focuses on providing reliable imaging in a variety of industrial, rescue, and inspection scenarios, ensuring that users get superior data even in challenging environments. With cutting-edge specifications like a 40MP telephoto sensor, 48MP wide-angle sensor, and advanced thermal imaging capabilities, the H30T takes aerial data collection to a professional and scientific level of excellence. Moreover, its 400x hybrid zoom, IP54 weather resistance, and robust temperature tolerance ensure optimal performance under diverse operational conditions, from freezing mountaintops to blazing deserts.

Precision Engineering and Gimbal Stability

One of the most impressive aspects of the DJI Zenmuse H30T is its ultra-precise gimbal system, engineered to ensure absolute stability during flight. The angular vibration range of just ±0.002° during hovering and ±0.004° during flight showcases how finely tuned the stabilization mechanisms are. This allows users to capture blur-free imagery, even under windy conditions or rapid flight movements. The mechanical range of motion, offering tilt angles between -132.5° to +73° and pan control of ±328°, provides excellent freedom for professional aerial operators to adjust the view seamlessly. Furthermore, the controllable range—tilt from -120° to +60° and pan of ±320°—ensures flexibility during missions requiring precision targeting or wide-area scanning. The H30T supports Follow, Free, and Re-center modes, allowing operators to customize their workflow whether they’re performing dynamic tracking, cinematic shoots, or industrial surveys. This level of stabilization and control precision reflects DJI’s expertise in merging mechanical design with intelligent gimbal performance.

Telephoto Camera: Long-Range Vision and High-Resolution Zoom

The telephoto camera on the H30T is designed for clarity across great distances, delivering exceptional detail with a 40MP 1/1.8-inch CMOS sensor. Its 7.1–172mm focal length (equivalent to 33.4–809.3mm in full-frame terms) gives it a 34x hybrid optical zoom and an astounding 400x digital zoom capability. This makes it ideal for applications such as power line inspections, law enforcement surveillance, environmental monitoring, and search and rescue operations, where detail from afar is critical. With a variable aperture ranging from f/1.6 to f/5.2 and a DFOV of 66.7°–2.9°, it ensures both wide scene coverage and narrow focus precision. The camera supports manual, auto, and exposure compensation modes, providing professional-grade control over lighting and contrast. The ISO range of 100–25,600 in normal mode and up to 819,200 in night mode enables the camera to perform extraordinarily well in low-light environments. With 4K (3840×2160) at 30fps video capture and 1920×1080 options, combined with support for H.264 and H.265 codecs, users can record cinematic-quality footage that is both crisp and efficient in data storage. This camera’s true strength lies in its versatility—handling both daylight clarity and night-time stealth with equal proficiency.

Wide-Angle Camera: Capturing Expansive and Vivid Perspectives

The wide-angle camera on the DJI Zenmuse H30T complements the telephoto unit with its 1/1.3-inch CMOS sensor boasting 48MP effective pixels. With a 6.72mm actual focal length (24mm full-frame equivalent), f/1.7 aperture, and 82.1° DFOV, this sensor captures broad landscapes and complex environments in incredible detail. Ideal for mapping, surveying, and situational awareness, this camera can capture wide contextual imagery that provides valuable insight for mission planning and analysis. The electronic shutter speed of 1/8000 to 2 seconds allows flexibility for capturing fast-moving subjects or stable long-exposure shots. Its ISO range of 100–409,600 in night mode ensures excellent noise control even in minimal light. The wide-angle camera supports spot and average metering, AE lock, and exposure compensation, enabling consistent exposure across varying lighting conditions. For professional-grade footage, the H30T records 4K UHD video at 30fps and offers advanced compression formats to maintain detail while optimizing storage. Whether used for cinematic aerial filming, infrastructure monitoring, or geological mapping, the wide-angle lens enhances the drone’s capability to deliver immersive and data-rich imagery.

Thermal Imaging Camera: Advanced Infrared Precision

The thermal imaging unit of the Zenmuse H30T stands as one of its most valuable components, providing temperature-based imaging that enables nighttime visibility, heat detection, and industrial inspection with pinpoint accuracy. It features an uncooled VOx microbolometer sensor with a 24mm focal length (52mm equivalent) and a 45.2° field of view, making it perfect for detecting temperature variations across diverse surfaces. With a NETD ≤ 50 mK @ f/1.0, it delivers exceptional thermal sensitivity, capable of identifying minor heat differences critical for detecting electrical faults, pipeline leaks, or missing persons in search and rescue operations. The H30T supports spot, area, and center-point temperature measurement, offering precise data across multiple heat zones. The temperature range spans from -20°C to 1600°C (with an optional infrared density filter), enabling wide industrial use from HVAC inspections to volcanic monitoring. Its video resolution of 1280×1024@30fps and photo mode at 1280×1024 R-JPEG format ensure detailed imaging, while thermal palettes like White Hot, Black Hot, Iron Red, and Rainbow allow customizable visualization for different analysis needs. Additionally, features like Sun Burn Protection, Auto/Manual FFC calibration, and temperature alert notifications make this camera robust and reliable under real-world conditions.

Laser Rangefinder: Accuracy Beyond Visual Limits

The integrated laser rangefinder in the DJI Zenmuse H30T enhances its professional-grade imaging suite by enabling precise distance measurement and target localization. Operating at a wavelength of 905nm, this Class 1 safe laser can accurately measure distances from 3 meters to 3000 meters (up to 1.86 miles). Its accuracy is remarkable—within ±0.2m for distances up to 500m and ±1m for longer ranges. This feature is invaluable for mapping, surveying, and tactical operations where knowing the exact distance to a subject can make the difference between success and error. The laser spot size is meticulously designed for precision, ranging from 50x450mm at 100m to 450x4500mm at 1000m, maintaining clear targeting accuracy over varying distances. The 52W laser pulse power and 260nJ emission limit ensure safe yet powerful performance. In field operations such as disaster assessment, rescue coordination, or construction monitoring, this laser rangefinder provides critical spatial data that integrates seamlessly with GPS and visual imaging systems, resulting in superior mission intelligence.

NIR Auxiliary Light and Low-Light Performance

To enhance night-time visibility and target illumination, the H30T comes equipped with an 850nm Near-Infrared (NIR) auxiliary light, expanding the drone’s operational capability into total darkness. With a 4.6°±0.6° field of view, this NIR light creates a 26.2-foot (8-meter) illumination circle at 100m, ensuring the subject remains visible to the optical sensors without interfering with thermal readings. As a Class 1 safety-regulated light source, it maintains human-safe emission levels while greatly improving low-light imaging accuracy. This makes it particularly useful for law enforcement surveillance, wildlife observation, and nighttime rescue missions, where stealth and visibility balance are critical. When combined with the H30T’s night scene video modes and high ISO performance, the NIR auxiliary light allows the operator to obtain clear visuals without relying on external light sources. This technology extends operational hours beyond daylight, enabling around-the-clock mission readiness.

Hybrid Zoom and Media Support

The DJI Zenmuse H30T supports an impressive 34x hybrid optical zoom and a maximum 400x hybrid zoom capability, merging data from its telephoto, wide-angle, and thermal cameras for comprehensive situational awareness. This system empowers users to shift seamlessly from large-scale scene monitoring to precise, detailed inspections within a single flight. The payload supports microSD, microSDHC, and microSDXC cards up to 512GB, with U3/V30 or faster recommended, ensuring smooth data recording even at the highest resolutions. The H30T’s compatibility with both CBR (Constant Bitrate) and VBR (Variable Bitrate) encoding allows flexible video data management, balancing quality and storage. The captured files—ranging from MP4 videos to R-JPEG thermal photos—are easily integrated into professional software for post-processing, analytics, and reporting. This hybrid capability effectively turns the drone into an all-in-one aerial inspection, surveillance, and mapping system, capable of addressing the needs of industries ranging from energy to agriculture.

Build Quality, Environmental Resistance, and Mounting System

The DJI Zenmuse H30T is built to endure real-world operational challenges. Encased in a durable black housing, it is IP54-rated for dust and water resistance, protecting internal electronics against rain, dust, and light splashes. This resilience enables operators to fly missions in diverse weather conditions, from dry deserts to humid coastal zones. Its operational temperature range of -20°C to 50°C and storage tolerance up to 60°C make it ideal for both hot and cold environments. The DJI SKYPORT detachable mounting system ensures secure and fast integration with compatible DJI Matrice platforms, supporting quick swaps during field operations. This mounting mechanism minimizes downtime, while maintaining a firm electrical and data connection for real-time performance. Combined with a proprietary power interface and efficient energy consumption, the H30T guarantees prolonged aerial endurance and reliable operation for extended missions.

Professional Applications

The DJI Zenmuse H30T is not merely a drone camera—it’s an intelligent aerial data collection system designed to redefine professional imaging standards. Its combination of high-resolution RGB sensors, thermal detection, long-range laser measurement, and advanced NIR lighting makes it indispensable for multiple sectors. Emergency response teams can use it for firefighting and disaster search missions, while energy companies employ it for powerline, solar, and wind turbine inspections. Law enforcement benefits from its long-range zoom and thermal detection for surveillance and tracking, whereas environmental agencies utilize it for wildlife monitoring, pollution tracking, and topographic mapping. The hybrid optical and thermal system ensures that every image captured contributes valuable, actionable insight. The integration with DJI’s robust flight control ecosystem, coupled with superior image stabilization and encoding technologies, transforms the Zenmuse H30T into a complete solution for precision aerial intelligence. Whether assessing infrastructure integrity, mapping geological features, or conducting night operations, the DJI Zenmuse H30T consistently delivers superior results through innovation, engineering excellence, and reliability that define DJI’s leadership in drone technology.
