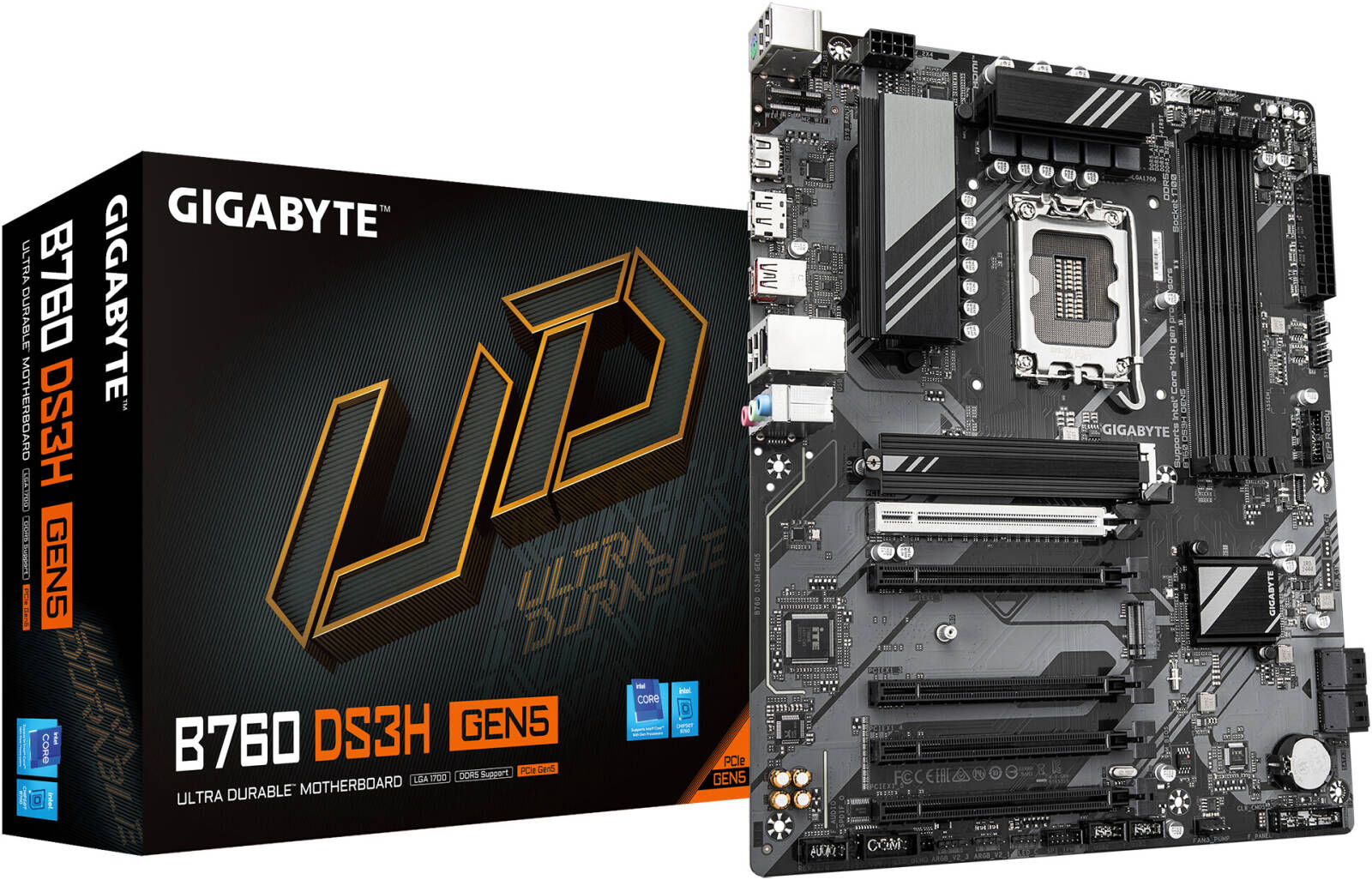

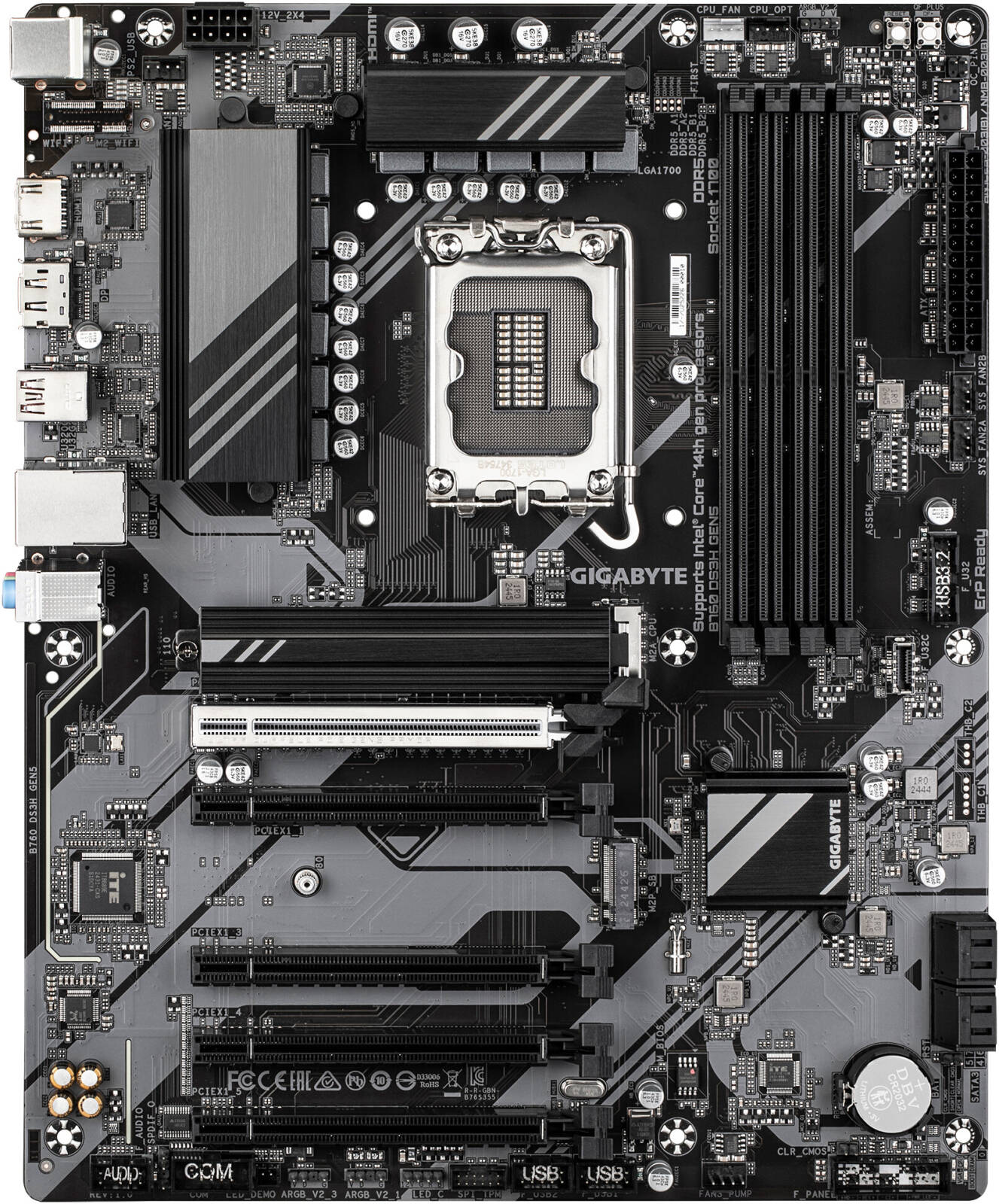

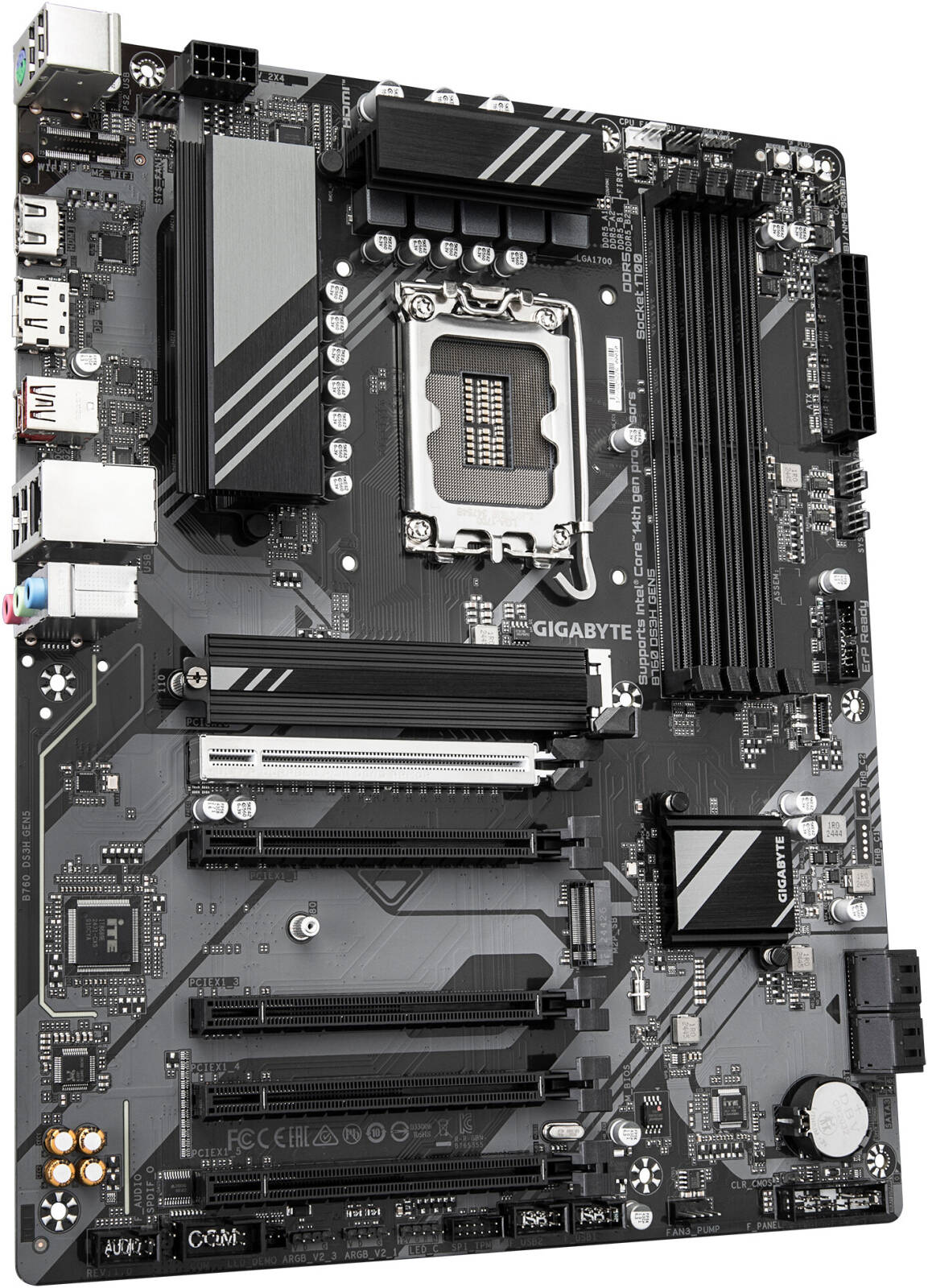

GIGABYTE B760 DS3H GEN5 LGA 1700 ATX Motherboard, Intel B760 Chipset, 4x DDR5 DIMM Slot, 256GB Max Memory, 1x PCIe 5.0 x16, 2x M.2 Slots | B760-DS3H-G

01 / 04

Sold & shipped by AMANOON

ShareWXf∞

GigabyteNEW · 2025SKU MOBO-B5BE6CADFE

GIGABYTE B760 DS3H GEN5 LGA 1700 ATX Motherboard, Intel B760 Chipset, 4x DDR5 DIMM Slot, 256GB Max Memory, 1x PCIe 5.0 x16, 2x M.2 Slots | B760-DS3H-G

0(0 reviews)·By AMANOON

Highlights

LGA-1700

B760 chipset

B760

ATX form factor

ATX

DDR5 support

2x M.2

PCIe 5.0

Sold by AMANOON

549

🚚Free 2-3 day

↩️7-day returns

🛡Warranty

✅Verified seller

In stock· 5 left, Dubai

Free delivery

Tomorrow before 9pm

Same-day Dubai

Order before 4pm

1 Year Warranty

Authorized by manufacturer

Description

The GIGABYTE B760 DS3H GEN5 LGA 1700 ATX Motherboard, Intel B760 Chipset, 4x DDR5 DIMM Slot, 256GB Max Memory, 1x PCIe 5.0 x16, 2x M.2 Slots | B760-DS3H-G is a desktop motherboard featuring LGA-1700, B760, ATX, DDR5. Built for reliable high-performance desktop builds.

Genuine product with warranty and fast delivery across the UAE from Amanoon.

Specifications

Technical Specifications

17 ITEMS

Chipset

Intel® B760 Express Chipset

Memory

Up to 256 GB DDR5DDR5 5600/5200/4800/4400 MT/s (i9/i7)DDR5 4800/4400 MT/s (i5/i3, others)4× DDR5 DIMM slots, Dual-channelSupports ECC (non-ECC mode) and XMP

Onboard Graphics

Intel® HD Graphics1× HDMI (4096×2160@60Hz, HDMI 2.1)1× DisplayPort (4096×2304@60Hz, DP 1.2)

Audio

Realtek® Audio CODEC, 2/4/5.1/7.1-ch, S/PDIF Out

LAN

Realtek® GbE LAN (1 Gbps)

Expansion Slots

1× PCIe 5.0 x16 (CPU)4× PCIe 3.0 x1 (Chipset)

Storage

2× M.2 (1 CPU PCIe 4.0 x4/x2, 1 Chipset PCIe 4.0 x4/x2)4× SATA 6Gb/sSupports RAID 0/1/5/10

USB Ports

Rear: 1× USB-C (3.2 Gen 2x2), 1× USB-A (3.2 Gen 2), 4× USB 2.0Internal: 1× USB-C (3.2 Gen 1), 1× USB 3.2 Gen 1 header, 2× USB 2.0 headers

Internal I/O

ATX 24-pin & 8-pin powerCPU/system/pump fan headers3× ARGB Gen2 headers1× RGB header2× M.2, 4× SATAFront panel, audio, S/PDIF, TPM, serial, USB headersQ-Flash Plus, Reset, Clear CMOS

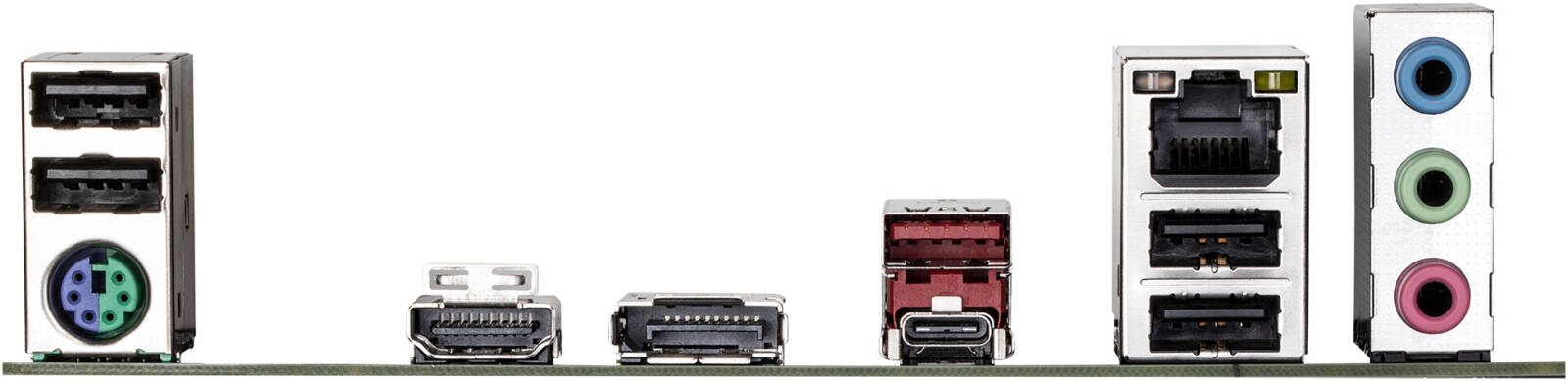

Back Panel

1× PS/2, 1× USB-C (3.2 Gen 2x2), 1× USB-A (3.2 Gen 2), 4× USB 2.0, 1× HDMI, 1× DP, 1× RJ-45, 3× audio jacks

I/O Controller

iTE® I/O Controller

Monitoring

Voltage, temperature, fan, pump, flow rate detection; speed control

BIOS

128 Mbit AMI UEFI BIOS; ACPI 5.0, SMBIOS 2.7, etc.

Features

GIGABYTE Control Center, Q-Flash, Q-Flash Plus, Smart Backup

Software

Norton® Internet Security OEM, LAN manager

OS Support

Windows 11 & 10 64-bit

Form Factor

ATX (30.5 cm × 24.4 cm)

Specifications subject to change without notice. All trademarks belong to their respective owners.
