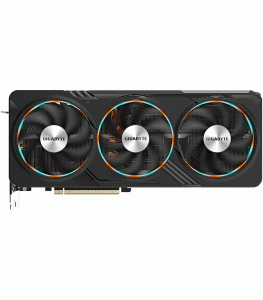

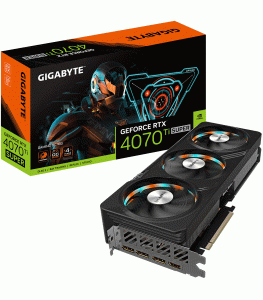

Gigabyte GeForce RTX 4070 Ti 16G Super Gaming OC Graphics Card

Features

The Gigabyte GeForce RTX 4070 Ti SUPER Gaming OC 16G Graphics Card represents one of the most powerful and advanced additions to NVIDIA’s RTX 40-series GPU lineup, specifically built for high-end gaming, 3D rendering, and AI-driven creative workloads. Leveraging the Ada Lovelace architecture, this GPU significantly enhances performance, energy efficiency, and graphical fidelity compared to its predecessors. Positioned between the RTX 4070 and RTX 4080 in terms of performance, the 4070 Ti SUPER offers a compelling mix of high-end capabilities and price-performance ratio for gamers and professionals alike. Gigabyte’s custom Gaming OC variant introduces factory overclocking, improved thermals, and a custom PCB layout, making it one of the most robust and desirable versions of the RTX 4070 Ti SUPER on the market. Equipped with 16GB of GDDR6X memory, a higher CUDA core count, and support for advanced NVIDIA features such as DLSS 3.5, ray tracing, Reflex, and AV1 encoding, this card stands out as a complete solution for future-proof 1440p and 4K gaming as well as heavy computational tasks.

Architecture and Core Features

At the heart of the RTX 4070 Ti SUPER lies the Ada Lovelace GPU architecture, built on TSMC’s 4nm process node. This refined and compact process allows for significantly more transistors, increased clock speeds, and improved energy efficiency compared to the Ampere-based RTX 30-series. The 4070 Ti SUPER features 8448 CUDA cores, which is an increase over the original 4070 Ti, allowing for more parallel processing power essential for real-time rendering and AI-based workloads. With 16GB of GDDR6X video memory operating on a 256-bit bus, the GPU boasts higher memory bandwidth than its non-SUPER variant, which directly contributes to improved performance in high-resolution gaming and data-intensive applications such as 3D rendering or AI model training. The core clock speed is enhanced through Gigabyte’s factory overclocking, with a boost clock that often reaches beyond the standard specifications, pushing performance without the user needing to manually tweak settings. This card also features support for next-gen display standards, including DisplayPort 1.4a and HDMI 2.1, allowing up to 8K resolution output with support for high refresh rates on compatible monitors.

Gigabyte Cooling and Design Innovations

The Gigabyte RTX 4070 Ti SUPER Gaming OC 16G features the WINDFORCE cooling system, which is a triple-fan solution designed for silent, high-performance thermal regulation. The fans use a unique alternate spinning configuration, where the central fan spins in the opposite direction to the side fans, reducing turbulence and enhancing airflow pressure. These 3x 100mm fans are built with 3D stripe curved blades, which optimize air intake and reduce noise. Additionally, the GPU includes composite copper heat pipes and a large copper plate in direct contact with the GPU die, which accelerates heat dissipation across the card. The heatsink is extended and finely tuned for even heat spread, and the rear of the card features a vented metal backplate that helps in passive heat dissipation and structural rigidity. The cooling system also includes semi-passive 0dB fan technology, meaning the fans will remain off when the card is under low load, delivering a silent computing experience when you’re not gaming or rendering. Gigabyte has also implemented advanced thermal monitoring sensors that dynamically adjust the fan speeds based on GPU temperature and workload intensity, ensuring optimal performance under all conditions.

Performance and Benchmarks

In terms of raw performance, the Gigabyte RTX 4070 Ti SUPER Gaming OC is engineered to handle 1440p ultra-wide and 4K gaming with ray tracing enabled at smooth frame rates. Benchmarks across modern AAA games such as Cyberpunk 2077, Hogwarts Legacy, Alan Wake 2, and Baldur’s Gate 3 consistently show that this GPU performs well above the original RTX 4070 Ti and closely trails behind the RTX 4080, particularly when DLSS 3 Frame Generation is utilized. DLSS 3, exclusive to the RTX 40-series, leverages AI to insert interpolated frames between rendered frames, significantly increasing FPS without compromising visual quality. This makes the card extremely efficient for graphically demanding games and VR applications. In synthetic tests such as 3DMark Time Spy, the 4070 Ti SUPER outperforms most other cards in its price bracket and demonstrates exceptional thermals, maintaining stable clocks and temperatures even under full load. Creative applications such as Adobe Premiere Pro, Blender, and DaVinci Resolve benefit from the expanded VRAM, CUDA cores, and NVIDIA Studio drivers that offer accelerated rendering, timeline scrubbing, and AI effects.

Aesthetic Design and Build Quality

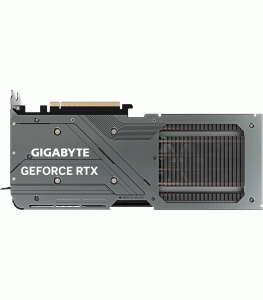

The visual presentation of the Gigabyte RTX 4070 Ti SUPER Gaming OC 16G reflects a premium, gamer-focused design language. The shroud features angular, futuristic styling with matte black and grey elements that blend seamlessly into modern gaming rigs. Customizable RGB Fusion lighting adds an extra flair to the card, allowing users to sync the card’s lighting with other Gigabyte components via the Gigabyte Control Center. This RGB lighting can be personalized with multiple modes including static, pulse, and cycling colors. The metal backplate not only contributes to aesthetics but also improves durability, reducing PCB flex and providing added protection against damage during installation. The card has a reinforced design with an anti-sag bracket to ensure long-term mechanical stability in vertical or horizontal mounting positions. Despite the massive triple-fan design, Gigabyte has ensured a relatively compact and well-balanced form factor for a triple-slot GPU, making it compatible with most ATX and E-ATX cases without needing excessive clearance.

AI Acceleration and Ray Tracing

The inclusion of 3rd-gen RT (Ray Tracing) cores and 4th-gen Tensor cores dramatically enhances the card’s ability to handle photorealistic lighting, shadows, and reflections. Ray tracing in real-time is significantly more feasible with this GPU due to its increased throughput and better architectural efficiency. In combination with DLSS 3.5 and AI denoising, the RTX 4070 Ti SUPER makes ray-traced games not only playable but enjoyable at high frame rates, even at 4K resolution. AI cores also boost performance in tasks such as upscaling, object recognition, generative fill, and physics simulations. With support for NVIDIA Broadcast, the card is a perfect choice for streamers and content creators who want to leverage AI noise removal, virtual backgrounds, and camera auto-framing in real time.

Software Ecosystem and Utility

Gigabyte supports this card with its intuitive software suite called Gigabyte Control Center (GCC), a unified application for managing RGB lighting, clock speeds, fan curves, and BIOS settings. Users can switch between OC mode and silent mode or customize fan curves and performance profiles according to specific workloads. Additionally, NVIDIA’s own software ecosystem including GeForce Experience, NVIDIA Studio, and the NVIDIA Broadcast Suite integrates seamlessly with the RTX 4070 Ti SUPER. GeForce Experience provides automatic game optimization, one-click driver updates, and in-game recording via ShadowPlay. For creators, NVIDIA Studio drivers ensure stability and performance enhancements in major creative applications like Adobe Creative Cloud, Autodesk Maya, and Unreal Engine 5.

Connectivity and Power Requirements

In terms of connectivity, the card offers 1x HDMI 2.1 and 3x DisplayPort 1.4a outputs, supporting up to four displays simultaneously and delivering ultra-high-resolution visuals at high refresh rates, including support for 4K at 144Hz or 8K at 60Hz. Power delivery is handled via a 16-pin (12VHPWR) connector, and Gigabyte includes a 2x 8-pin to 16-pin adapter in the box. The recommended PSU is 750W, and the GPU itself typically draws around 285W under full load. Power phase design and enhanced capacitors ensure stable overclocking performance and longevity, with military-grade components used across the PCB for optimal durability and electrical efficiency.

Longevity and Future-Proofing

One of the most compelling reasons to consider the Gigabyte RTX 4070 Ti SUPER Gaming OC is its long-term viability. With 16GB of VRAM, it is well-equipped to handle future gaming titles, especially as texture sizes and graphical complexity increase in upcoming game engines like Unreal Engine 5 and Unity HDRP. The card also supports AV1 encoding, which is important for future-proofing content creation workflows, livestreaming, and video compression in platforms such as YouTube and Twitch. Gamers looking to pair the card with a high-refresh-rate 1440p or 4K monitor will find the 4070 Ti SUPER ideal for several years of premium-level gaming. Its efficiency also means better performance per watt compared to older GPUs, contributing to lower heat output and quieter operation.

the Gigabyte GeForce RTX 4070 Ti SUPER Gaming OC 16G is a meticulously engineered graphics card that combines raw power, aesthetic appeal, and technological innovation into one high-performance package. It bridges the gap between the original 4070 Ti and the RTX 4080, offering users a balance of performance and affordability that is highly competitive in the premium gaming market. Gigabyte’s factory overclocking, advanced cooling solutions, robust build quality, and user-friendly software make this variant particularly attractive for gamers and content creators who demand reliable performance and future-ready features. Whether you are aiming for immersive 4K gaming, experimenting with real-time ray tracing, rendering 3D assets, or producing high-resolution video content, the RTX 4070 Ti SUPER Gaming OC by Gigabyte stands as a worthy investment that will not disappoint. With its powerful specs, versatile design, and long-term software support from both NVIDIA and Gigabyte, it is truly one of the most compelling GPUs available in its segment today.
