GigabyteNEW · 2025SKU MOBO-FF56120885

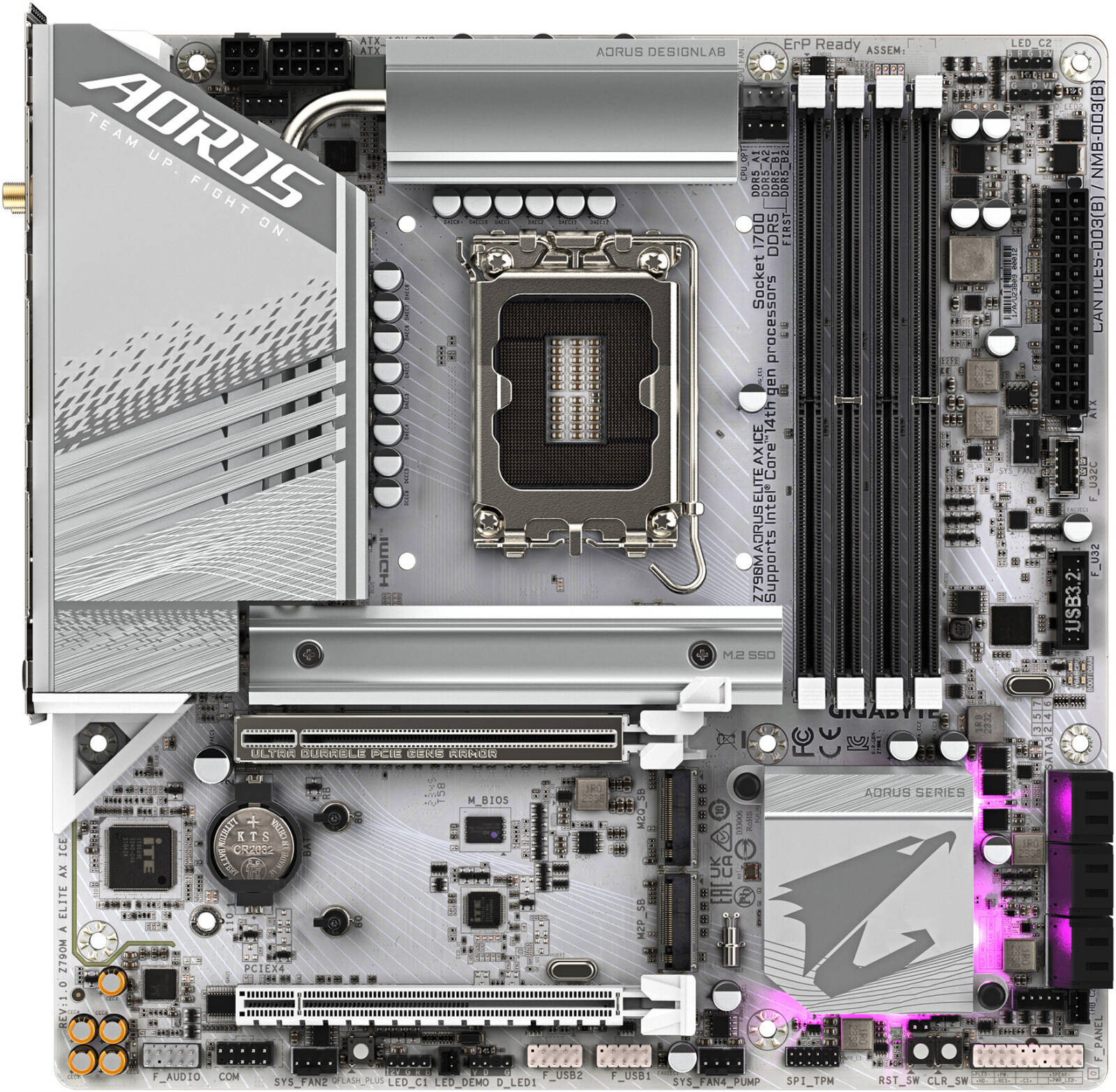

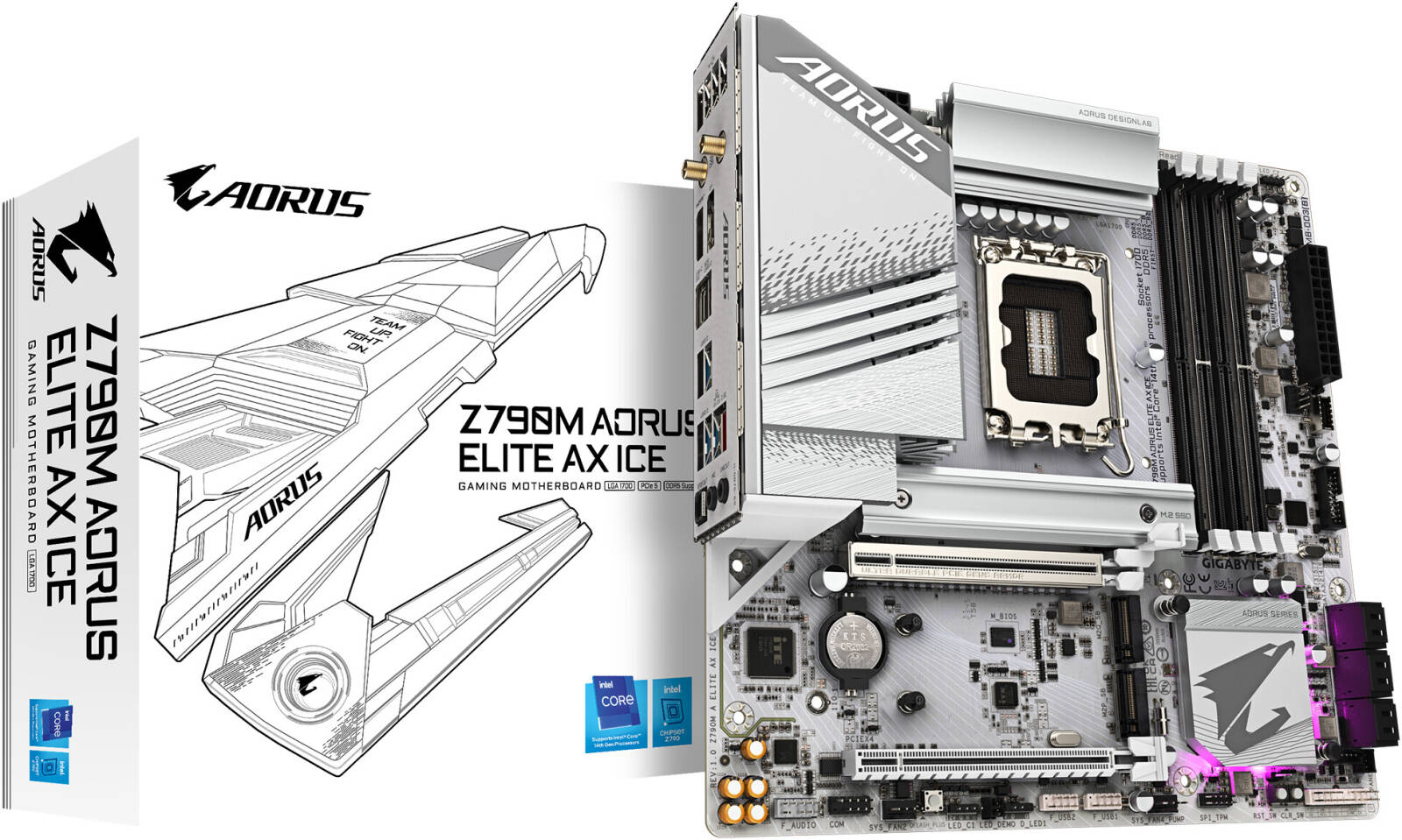

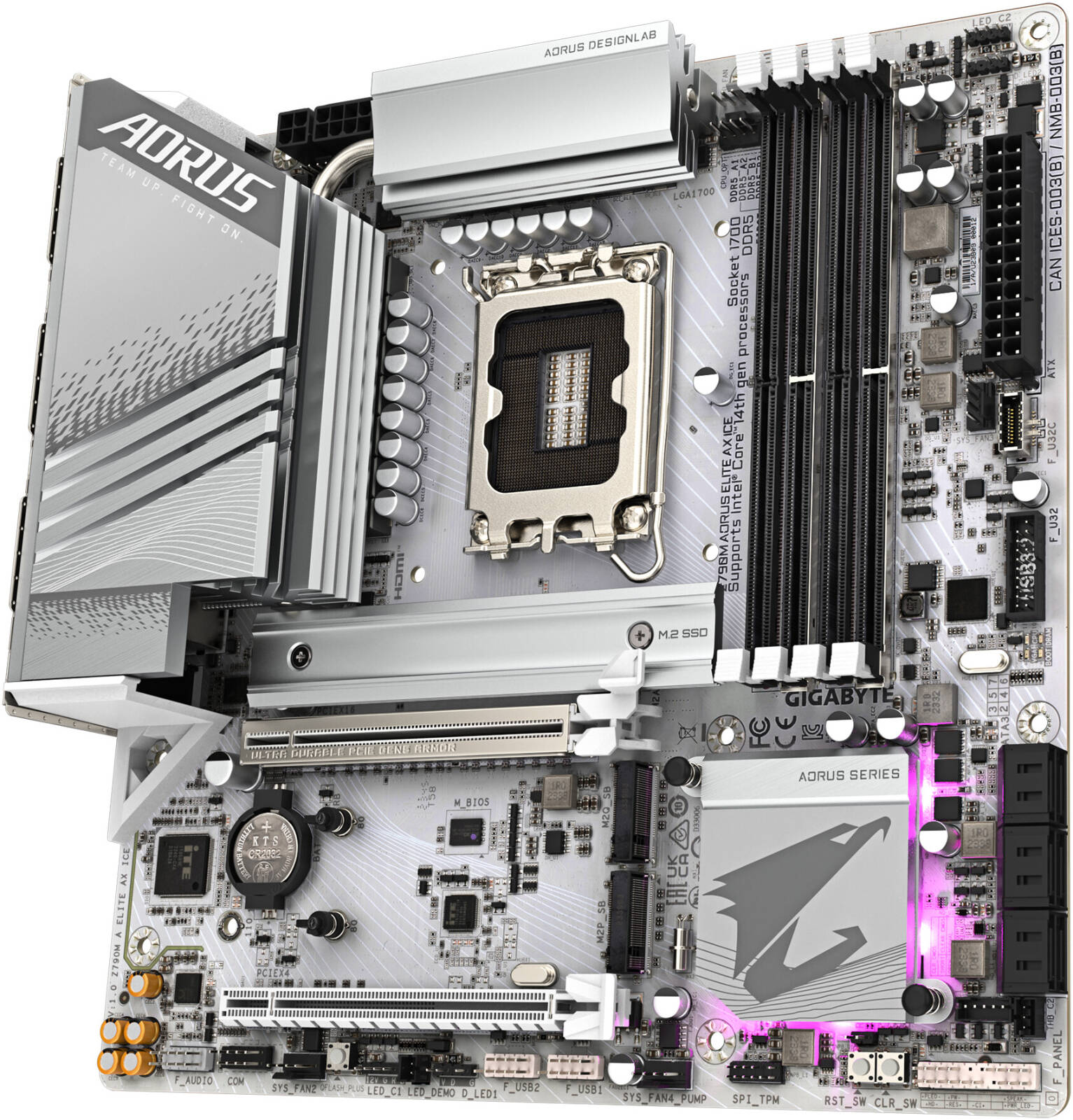

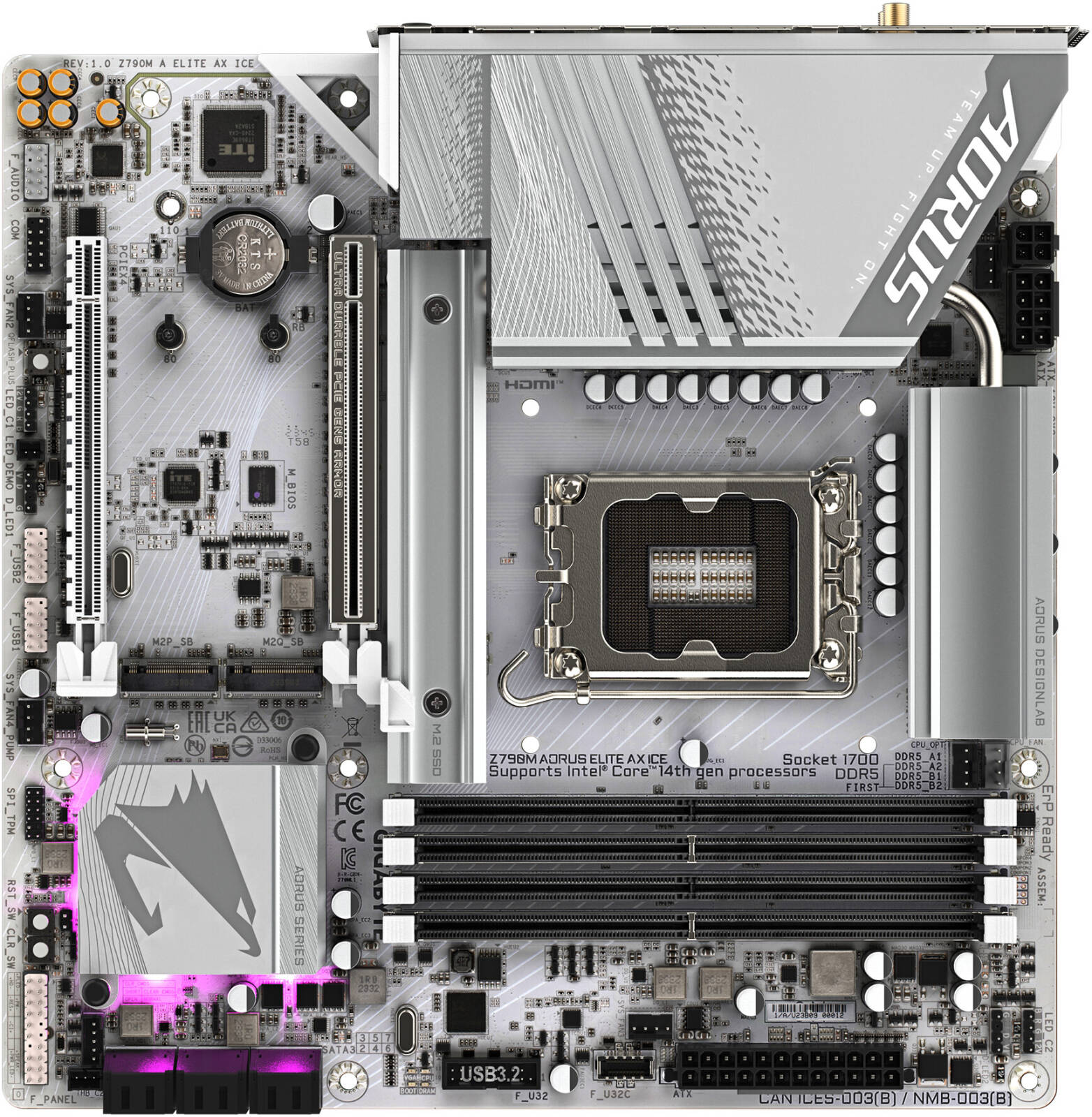

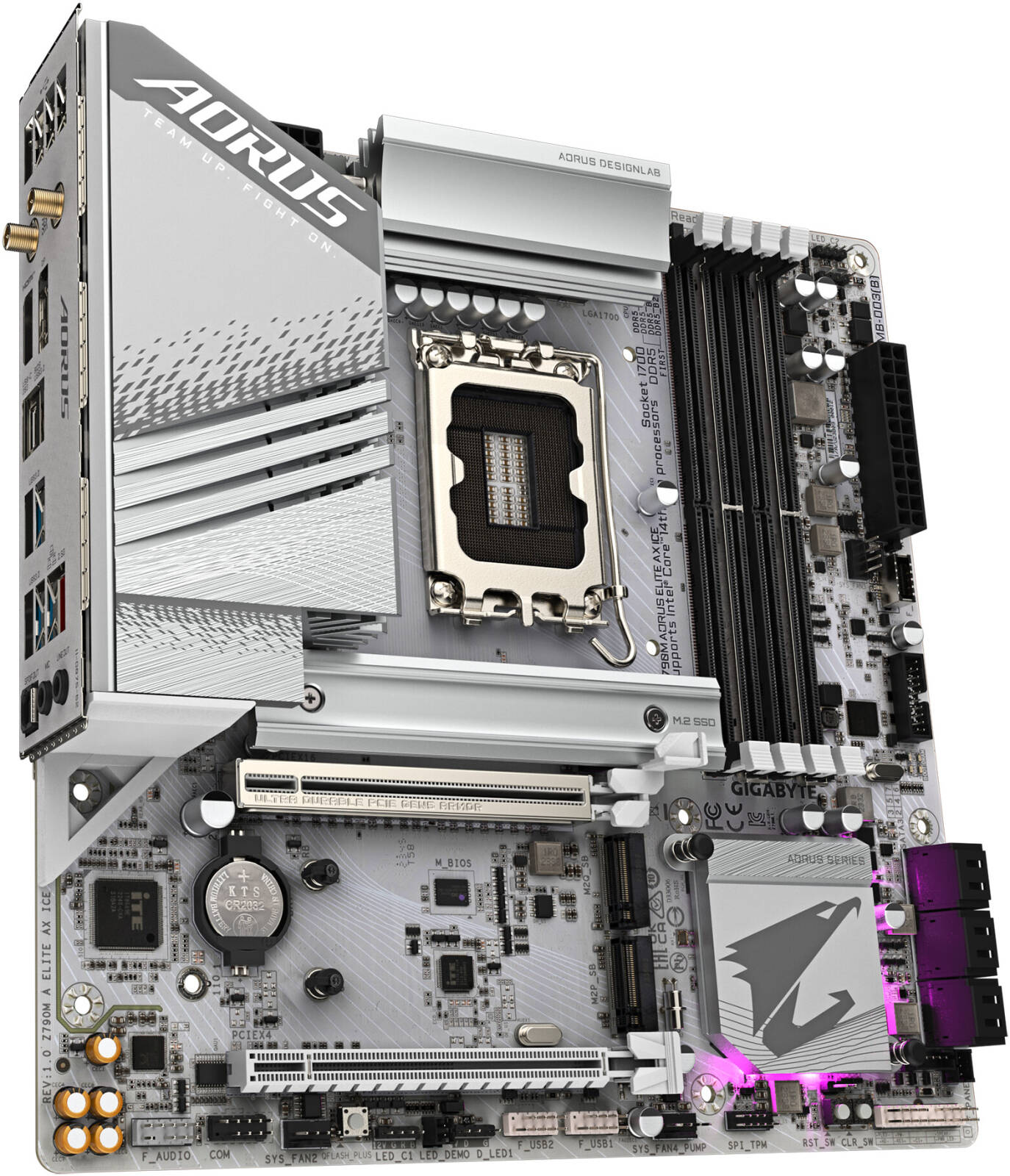

GIGABYTE Z790M Aorus Elite AX Ice Micro ATX LGA 1700 Motherboard, Intel Z790 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x
GIGABYTE Z790M Aorus Elite AX Ice Micro ATX LGA 1700 Motherboard, Intel Z790 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x
Highlights
LGA-1700
Z790 chipset
Z790
mATX form factor
mATX
DDR5 support
Sold by AMANOON
1,155
🚚Free 2-3 day
↩️7-day returns
🛡Warranty
✅Verified seller
In stock· 5 left, Dubai
Free delivery
Tomorrow before 9pm
Same-day Dubai
Order before 4pm
1 Year Warranty
Authorized by manufacturer
Description
The GIGABYTE Z790M Aorus Elite AX Ice Micro ATX LGA 1700 Motherboard, Intel Z790 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x is a desktop motherboard featuring LGA-1700, Z790, mATX, DDR5. Built for reliable high-performance desktop builds.
Genuine product with warranty and fast delivery across the UAE from Amanoon.
Specifications
Technical Specifications
33 ITEMSL3 Cache
Varies with CPU
Chipset
Intel® Z790 Express Chipset
Memory
Supported Memory
DDR5 7600(O.C.)/7400(O.C.)/7200(O.C.) and more; up to 256 GB (64 GB per DIMM)
Channels
Dual-channel
ECC/Non-ECC
Supports ECC (non-ECC mode) and non-ECC un-buffered DIMM
Onboard Graphics
Integrated Graphics
Intel® HD Graphics
HDMI
1 x HDMI 2.1, max resolution 4096x2160@60 Hz
DisplayPort
1 x DisplayPort 1.2, max resolution 4096x2304@60 Hz
Audio
Codec
Realtek® ALC1220
Features
DSD audio support, S/PDIF Out
LAN
Ethernet
Realtek® 2.5GbE LAN
Wireless Communication
Wi-Fi
Intel® Wi-Fi 6E AX211 or Realtek® Wi-Fi 6E RTL8852CE
Bluetooth
Bluetooth 5.3
Expansion Slots
CPU Slot
1 x PCIe 5.0 x16
Chipset Slot
1 x PCIe 4.0 x4
Storage Interface
M.2
3 x M.2 PCIe 4.0 slots
SATA
6 x SATA 6Gb/s
RAID Support
NVMe/SATA RAID 0, 1, 5, 10
USB
Back Panel USB
1 x USB Type-C® (3.2 Gen 2x2), 1 x USB 3.2 Gen 2, 4 x USB 3.2 Gen 1, 4 x USB 2.0
Internal USB
1 x USB Type-C® (3.2 Gen 2), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers
Internal I/O
Power Connectors
24-pin ATX, 8-pin ATX 12V, 4-pin ATX 12V
Fan Headers
1 x CPU, 1 x water cooling CPU, 3 x system fans, 1 x system fan/pump
RGB/LED Headers
2 x Addressable LED, 2 x RGB LED
M.2 Slots
3

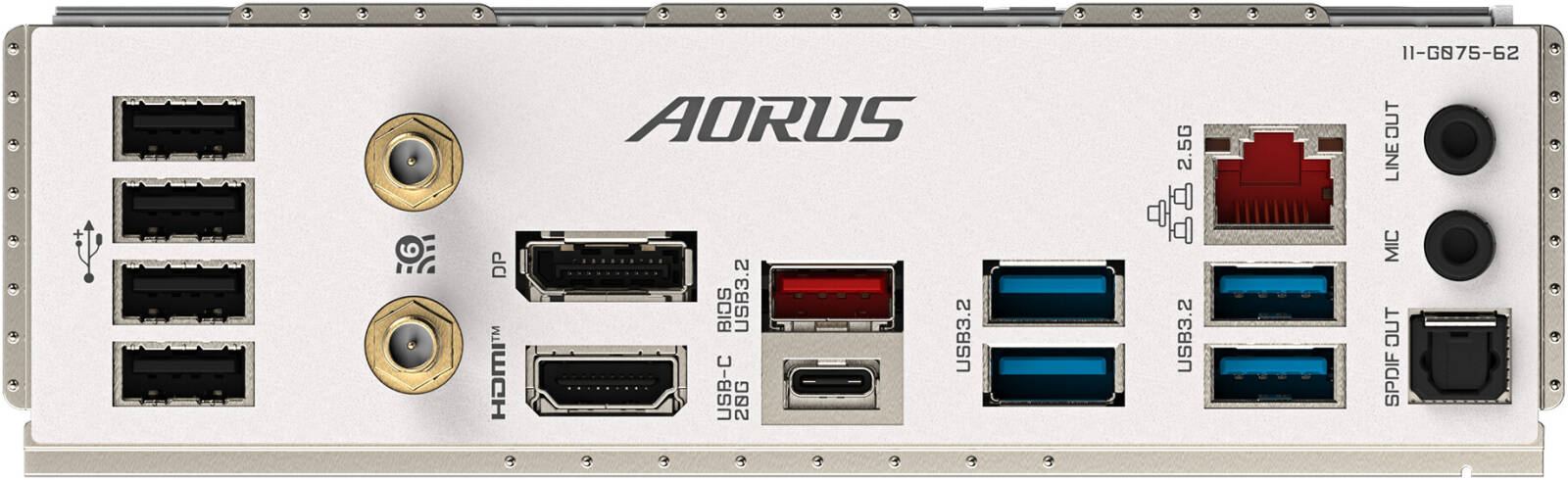

Back Panel Connectors
USB
1 x USB Type-C® (3.2 Gen 2x2), 1 x USB 3.2 Gen 2, 4 x USB 3.2 Gen 1, 4 x USB 2.0
Audio
2 x audio jacks, 1 x optical S/PDIF
Display
1 x HDMI 2.0, 1 x DisplayPort
Ethernet
1 x RJ-45
BIOS
BIOS Type
256 Mbit flash, AMI UEFI
Unique Features
Utilities
GIGABYTE Control Center, Smart Backup
Software
Norton® Internet Security (OEM), LAN bandwidth management software
Operating System
Compatibility
Windows 11 64-bit, Windows 10 64-bit
Form Factor
Micro ATX, 24.4cm x 24.4cm
Specifications subject to change without notice. All trademarks belong to their respective owners.
