Features

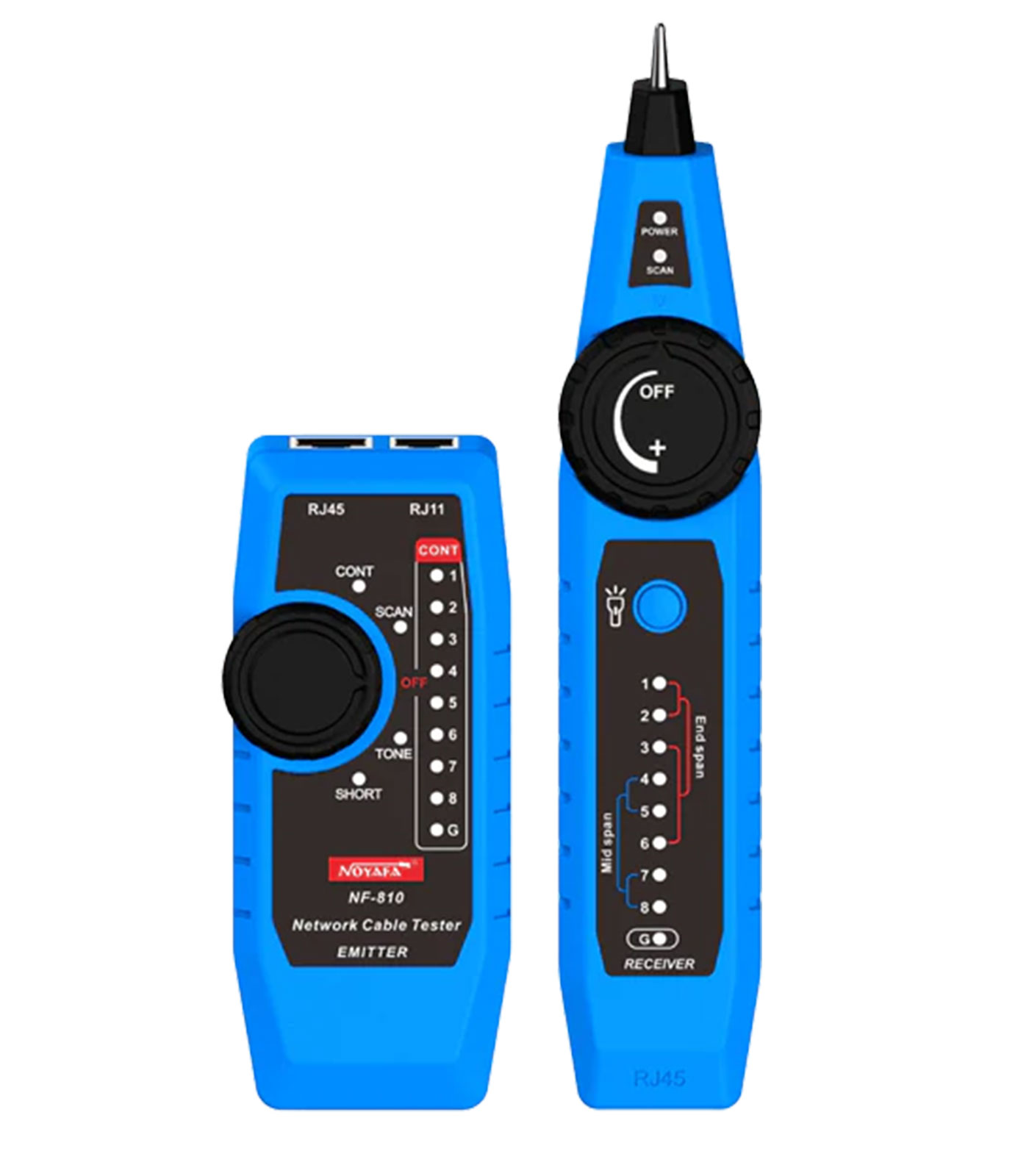

The NOYAFA NF-810 Network Cable Tester is a professional-grade multifunctional tool designed for network engineers, telecom technicians, IT support professionals, and installers who require precise, efficient, and reliable cable testing and tracing. Built to handle modern networking environments, the NF-810 supports CAT5, CAT6, and telephone cables, making it an all-in-one solution for structured cabling systems. With advanced features such as wire mapping, POE switch testing, line tracking, short-circuit detection, and LED illumination, this device significantly reduces troubleshooting time while increasing accuracy. The tester’s compact yet rugged design ensures it performs reliably in both indoor and field environments, from office data centers to complex commercial installations. NOYAFA has engineered the NF-810 to meet the evolving demands of modern networking by combining essential testing functions with intuitive operation.

Design, Build Quality, and Ergonomics

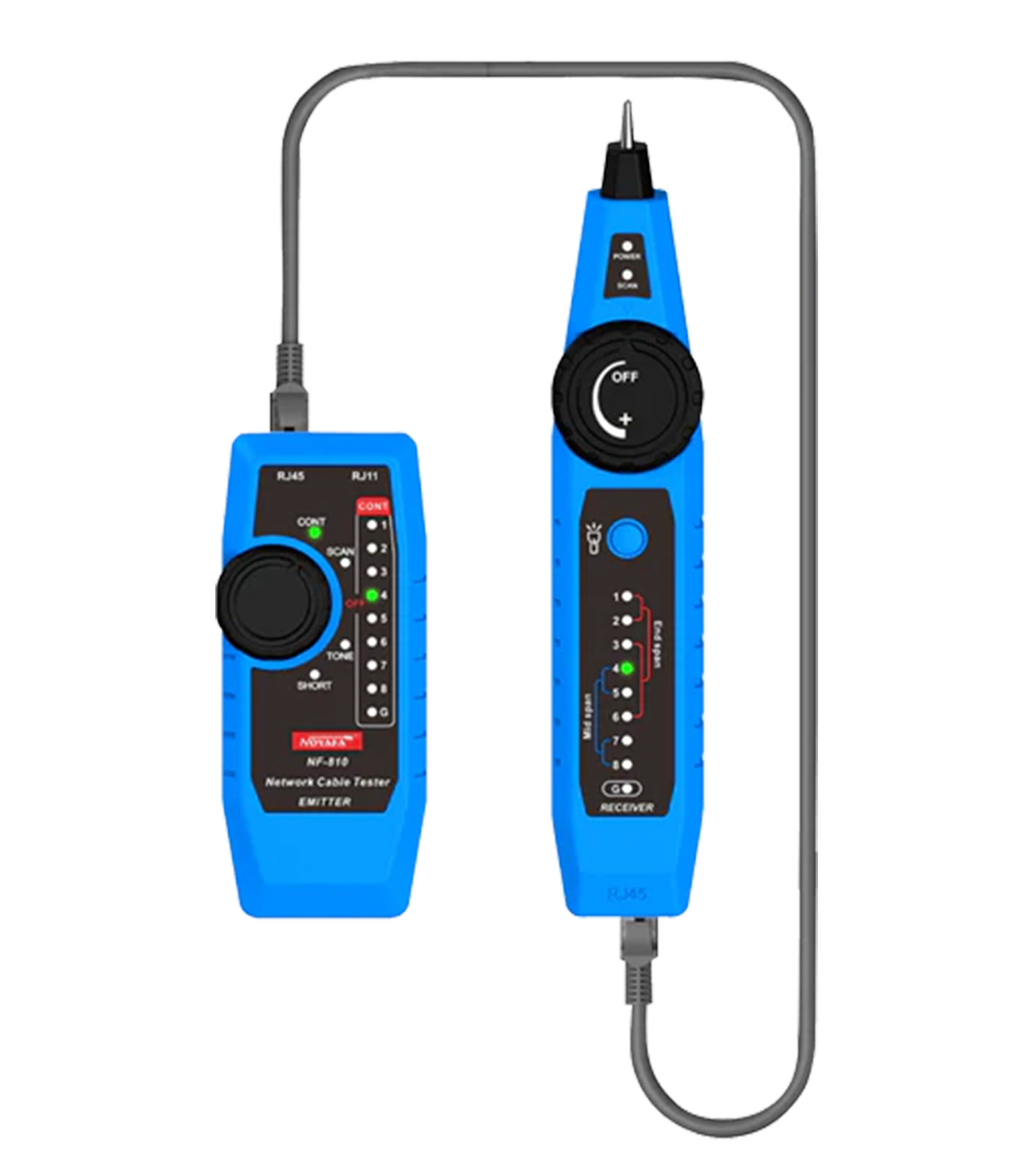

The NOYAFA NF-810 features a thoughtfully engineered design that balances portability with durability. The main unit measures 201 × 45 × 27 mm, while the receiver unit measures 125 × 28 × 45 mm, making both components compact enough to fit comfortably in a technician’s toolkit. The housing is constructed from high-quality, impact-resistant materials that protect internal components from accidental drops and rough handling. The ergonomic layout ensures that buttons, ports, and controls are easily accessible, even when operated with one hand. The inclusion of LED lighting enhances visibility in dark or poorly lit environments such as ceilings, server racks, or underground cable conduits. Additionally, the headphone function allows technicians to work in noisy environments without losing signal clarity, demonstrating NOYAFA’s focus on real-world usability and technician comfort.

Power System and Energy Efficiency

Powered by a 9V laminated battery, the NOYAFA NF-810 offers a reliable and efficient power solution suitable for extended field use. The device is optimized for low energy consumption, with a maximum working current of less than 70mA and a tracking working current of ≤40mA, ensuring longer battery life without frequent replacements. This makes it ideal for professionals who work long hours on-site and cannot afford interruptions due to power failure. The energy-efficient design does not compromise performance, allowing all functions—including scanning, tracking, and POE testing—to operate smoothly. The NF-810’s stable power management system ensures consistent signal output and accurate readings, even during prolonged testing sessions.

Cable Compatibility and Interface Specifications

The NOYAFA NF-810 supports a wide range of commonly used cables, including CAT5, CAT6, and telephone cables, making it versatile for both data and voice network installations. Equipped with RJ11 and RJ45 interfaces, the tester seamlessly integrates into existing network infrastructures without the need for adapters. The interface withstand voltage of 60V ensures safe operation when testing live or partially energized lines, protecting both the device and the user. This wide compatibility allows technicians to test Ethernet networks, telephone systems, and mixed cabling environments using a single device. The ability to switch directly to a RJ45 main interface connected to a network switch further enhances its practicality, enabling real-time diagnostics in active network environments.

Wire Mapping and Continuity Testing Capabilities

One of the standout features of the NOYAFA NF-810 is its comprehensive wire mapping function, which accurately identifies wiring sequences, open circuits, miswires, crossed pairs, and split pairs. This feature is essential for ensuring that network cables are terminated correctly and meet industry standards. The tester visually displays wire mapping results through clear LED indicators, allowing technicians to quickly diagnose issues without guesswork. Wire mapping is particularly valuable during large-scale installations, where even a single wiring error can disrupt network performance. By offering consistent and reliable wire mapping results, the NF-810 helps reduce rework, minimize downtime, and ensure stable network connectivity.

Advanced Line Tracking and Scanning Function

The NF-810 includes a powerful scanning and line tracking function designed to identify and trace cables over long distances, even within complex wiring bundles. Using dual tone pulse signal transmission, the device can track cables up to a distance of ≤1 km, making it highly effective for large buildings, campuses, and industrial facilities. The adjustable sensitivity control allows users to fine-tune signal detection based on cable density and environmental interference. This ensures accurate identification of target cables without cross-talk or false positives. The scanning function is invaluable when locating hidden or unlabeled cables, significantly reducing the time and effort required for cable management and troubleshooting.

Short Circuit and Channel Testing Performance

Short circuits and channel faults can cause serious network disruptions if not identified promptly. The NOYAFA NF-810 is equipped with short circuit and channel test functions that quickly detect abnormal connections, damaged conductors, or improper terminations. These tests help technicians pinpoint faults before they escalate into more significant problems such as data loss or equipment damage. The tester’s ability to analyze channels accurately ensures that each conductor within a cable is functioning as intended. This is particularly important in enterprise networks where high data integrity and uptime are critical. The NF-810’s fast and reliable fault detection helps maintain network stability and reduces troubleshooting costs.

POE Switch Testing and Live Network Diagnostics

Modern networks increasingly rely on Power over Ethernet (POE) to power devices such as IP cameras, wireless access points, and VoIP phones. The NOYAFA NF-810 includes a dedicated POE switch test function, allowing technicians to detect the presence and status of POE power on network lines. This feature helps verify whether a switch is supplying power correctly and whether connected devices are receiving adequate voltage. By supporting live network diagnostics, the NF-810 enables safe and effective testing without disrupting network operations. This capability is especially valuable during installation, maintenance, and upgrades of POE-enabled systems.

Telephone Line Polarity and Signal Transmission Analysis

In addition to data cable testing, the NF-810 offers comprehensive telephone line polarity state testing, ensuring correct line orientation and signal flow. Incorrect polarity can lead to communication issues and device malfunctions, making this feature essential for telecom installations. The device uses dual tone pulse signal transmission, which provides stable and accurate signal output for both cable tracing and line analysis. This transmission method ensures clear detection even in environments with electrical noise or interference. By supporting both data and voice line testing, the NF-810 serves as a multifunctional tool suitable for diverse networking scenarios.

Professional Applications

The NOYAFA NF-810 Network Cable Tester is designed to meet the demands of professional technicians across various industries, including IT services, telecommunications, security system installation, and network infrastructure maintenance. Its combination of advanced features, durable construction, and user-friendly operation makes it an excellent investment for both individual technicians and organizations. From wire mapping and POE testing to long-distance cable tracking and telephone line analysis, the NF-810 delivers comprehensive functionality in a compact form. By reducing troubleshooting time, improving diagnostic accuracy, and enhancing workflow efficiency, this tester provides exceptional value. The NOYAFA NF-810 stands as a reliable, versatile, and cost-effective solution for modern network testing requirements.
