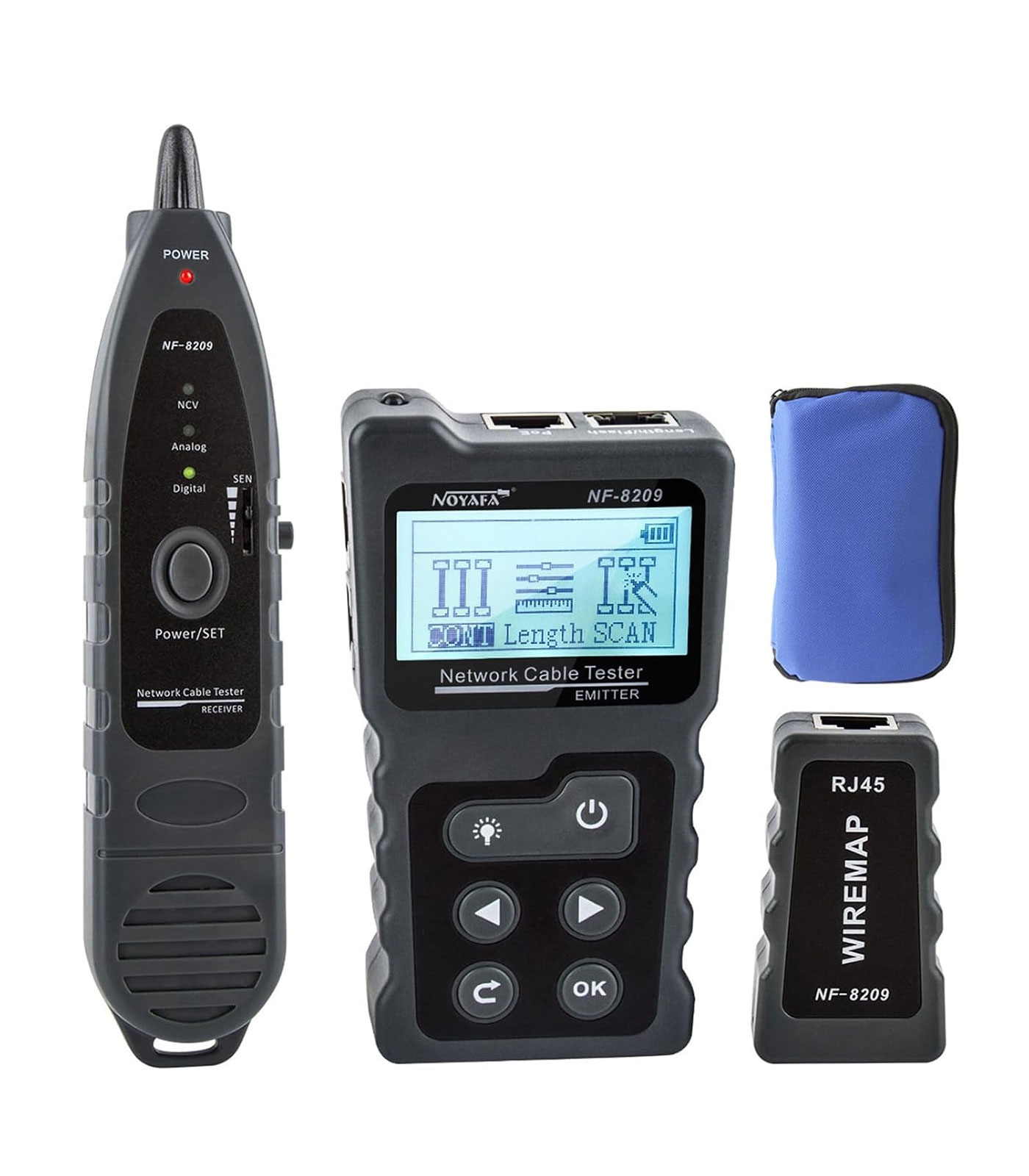

NOYAFA NF-8209 Advanced Network Cable Toner & Probe Kit and Tester

NOYAFA NF-8209 Advanced Network Cable Toner & Probe Kit and Tester

Features

The NOYAFA NF-8506 Ethernet Cable Tester with IP Scanner is a professional-grade networking tool designed for technicians, IT engineers, CCTV installers, and network maintenance professionals who demand accuracy, versatility, and efficiency in a single device. Built to handle modern Ethernet infrastructures, this tester supports CAT5 and CAT6 cables, making it suitable for both legacy networks and high-speed Gigabit environments. Its all-in-one design combines wiremap testing, cable length measurement, signal scanning, PoE detection, port blinking, and advanced fault diagnosis. Whether you are deploying a new LAN, troubleshooting existing wiring, or maintaining large-scale commercial networks, the NF-8506 provides reliable performance across short and long-distance cable runs. Its compact form factor and rugged build allow it to be used comfortably in offices, data centers, industrial sites, and outdoor installations where precision and durability are essential.

Wiremap Testing and Cable Fault Diagnosis

One of the strongest features of the NOYAFA NF-8506 is its advanced wiremap testing capability, which enables technicians to quickly verify cable integrity and wiring accuracy. It supports detailed testing for normal connections, open circuits, short circuits, crossed pairs, and miswiring, ensuring that every core is correctly terminated according to Ethernet standards. Compatible with both STP and UTP cables, the device adapts easily to shielded and unshielded environments, making it ideal for offices, factories, and surveillance installations. With a maximum wiremap test range of up to 600 meters (1,968 feet), the NF-8506 excels in large buildings and campus networks where cable paths may be extensive. Clear visual feedback on the LCD display allows users to identify faults instantly, significantly reducing troubleshooting time and minimizing costly rework during network installations.

Quality Control (QC) Testing Performance

For professionals who require consistent and repeatable results, the QC test function of the NF-8506 ensures high reliability in daily operations. Supporting 8P test types, it evaluates all eight conductors in an Ethernet cable with exceptional precision. The device boasts a response speed of less than one second, allowing rapid testing even when handling dozens or hundreds of cables in a single session. Its minimum recognition distance of just 10 cm (3 inches) makes it highly effective for short patch cords as well as long horizontal cabling. This feature is especially valuable in manufacturing, warehousing, and enterprise environments where quality assurance and cable certification are critical to maintaining network performance and compliance standards.

Accurate Cable Length Measurement

The NOYAFA NF-8506 is equipped with an advanced cable length measurement system specifically optimized for CAT5 and CAT6 cables. It supports a testing range from 2.5 meters to 200 meters (8 to 656 feet), covering most practical networking scenarios. What sets this device apart is its tiered accuracy profile, delivering precise measurements across varying distances. For shorter cables under 20 meters, it maintains an accuracy of ≤20m ±4.6m, while mid-range cables between 20 and 100 meters achieve ±2.4m accuracy, and longer runs over 100 meters remain accurate within ±3.2m. This level of precision helps installers verify cable routing, detect hidden breaks, and confirm compliance with Ethernet distance limitations, ultimately ensuring stable signal transmission and reduced packet loss.

Advanced Cable Scanning and Signal Tracing

Cable tracing and identification are made effortless with the NF-8506’s signal scanning functionality, which is compatible with CAT5 and CAT6 cables. Operating at a frequency of 455KHz and a maximum signal voltage of 5V ±1.0VP-P, the tester delivers strong, stable signals for accurate tracing through walls, conduits, and cable bundles. The dual-mode scanning system, offering both analog and digital modes, provides flexibility for different environments and noise conditions. With a maximum scan range of 600 meters (1,968 feet), users can quickly locate target cables even in complex wiring closets or large-scale installations. This feature significantly reduces downtime during maintenance and simplifies cable management in dense network infrastructures.

PoE Detection and Power Analysis

Modern networks increasingly rely on Power over Ethernet (PoE) to power devices such as IP cameras, wireless access points, and VoIP phones. The NOYAFA NF-8506 includes comprehensive PoE testing capabilities, supporting a voltage test range from DC 5V to 60V. It can identify various power supply core jumper modes, including end jumper, middle jumper, 8-core power supply, and unknown configurations. The device is compatible with non-standard PoE as well as IEEE 802.3af and 802.3at standards, making it suitable for both legacy and modern PoE deployments. By accurately detecting voltage levels and power sourcing equipment (PSE) types, the NF-8506 helps prevent device damage, ensures safe installations, and confirms that connected equipment receives adequate power.

Port Blinking and Network Interface Recognition

The port blinking function of the NOYAFA NF-8506 is an invaluable tool for identifying active ports on switches and routers. This feature supports full-duplex and half-duplex recognition, allowing technicians to quickly assess link performance. It also distinguishes between auto-negotiation and non-auto-negotiation modes, providing insight into how network devices communicate and establish connections. Additionally, the tester can identify switch speeds of 10Mbps, 100Mbps, and 1000Mbps, making it easier to verify network configurations and detect mismatched settings. This functionality is particularly useful in large server rooms and enterprise networks where tracing physical ports to logical connections can otherwise be time-consuming and error-prone.

Transmitter Design, Display, and Power Management

The transmitter unit of the NF-8506 is designed with usability and efficiency in mind. It features a 180×64 LCD display with backlight, ensuring clear visibility in low-light environments such as server racks or ceiling installations. Supporting Chinese and English languages, the interface is accessible to a wide range of users. Equipped with RJ45 and RJ11 ports, it accommodates both Ethernet and telephone line testing. Power is supplied by a 3.7V 1400mAh polymer lithium battery, providing long operational life with a low battery power indication to prevent unexpected shutdowns. The adjustable auto-off settings of 15, 30, or 60 minutes, or completely off, help conserve energy during extended use. With DC 60V voltage protection and a maximum working current of ≤200mA, the transmitter ensures safe and reliable performance. Its compact size of 125×70×32mm makes it easy to carry and operate in confined spaces.

Receiver Capabilities and User Convenience Features

The receiver unit complements the transmitter with enhanced detection and user-friendly features. It offers adjustable scan strength, allowing precise cable tracing even in noisy environments. The built-in NCV (Non-Contact Voltage) detection, supporting AC 70V to 1000V at 50/60Hz, adds an extra layer of safety by alerting users to the presence of live electrical lines. Like the transmitter, it includes DC 60V voltage protection and maintains a maximum working current of ≤200mA. The receiver is equipped with an RJ45 port, voice prompts for guided operation, a headphone jack for clear signal monitoring, and LED indicators for power status and illumination. Powered by a 3.7V 1400mAh polymer lithium battery, it delivers dependable performance throughout the workday. Its ergonomic size of 198×50×30mm ensures comfortable handling, even during prolonged troubleshooting sessions.

Practical Applications and Professional Value

The NOYAFA NF-8506 Ethernet Cable Tester with IP Scanner stands out as a versatile and reliable solution for a wide range of networking applications. From residential installations to enterprise-level infrastructure, it supports technicians in diagnosing faults, verifying cable quality, tracing connections, and ensuring PoE compatibility with confidence. Its combination of long-range testing, high accuracy, advanced scanning, and safety features makes it an essential tool for maintaining modern networks. By reducing troubleshooting time, preventing installation errors, and enhancing overall efficiency, the NF-8506 delivers exceptional value to professionals who rely on precision and performance in their daily work.
